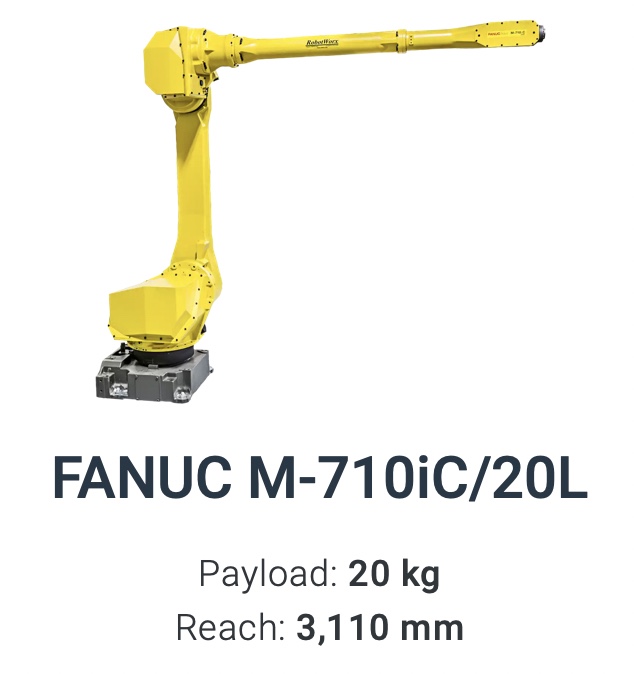

The Fanuc M-710iC/20L Robot is a very versatile robot used in so many applications. The robot runs on the Fanuc R30iB controller platform. It can be used in a large variety applications and can be found in used across many different industries.
Robot Specifications:
Axes: 6
Payload: 20kg
H-Reach: 3110mm
Repeatability: ±0.15mm
Robot Mass: 540kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed
J1 175 °/s (3.05 rad/s)
J2 175 °/s (3.05 rad/s)
J3 180 °/s (3.14 rad/s)
J4 350 °/s (6.11 rad/s)
J5 360 °/s (6.28 rad/s)
J6 600 °/s (10.47 rad/s)

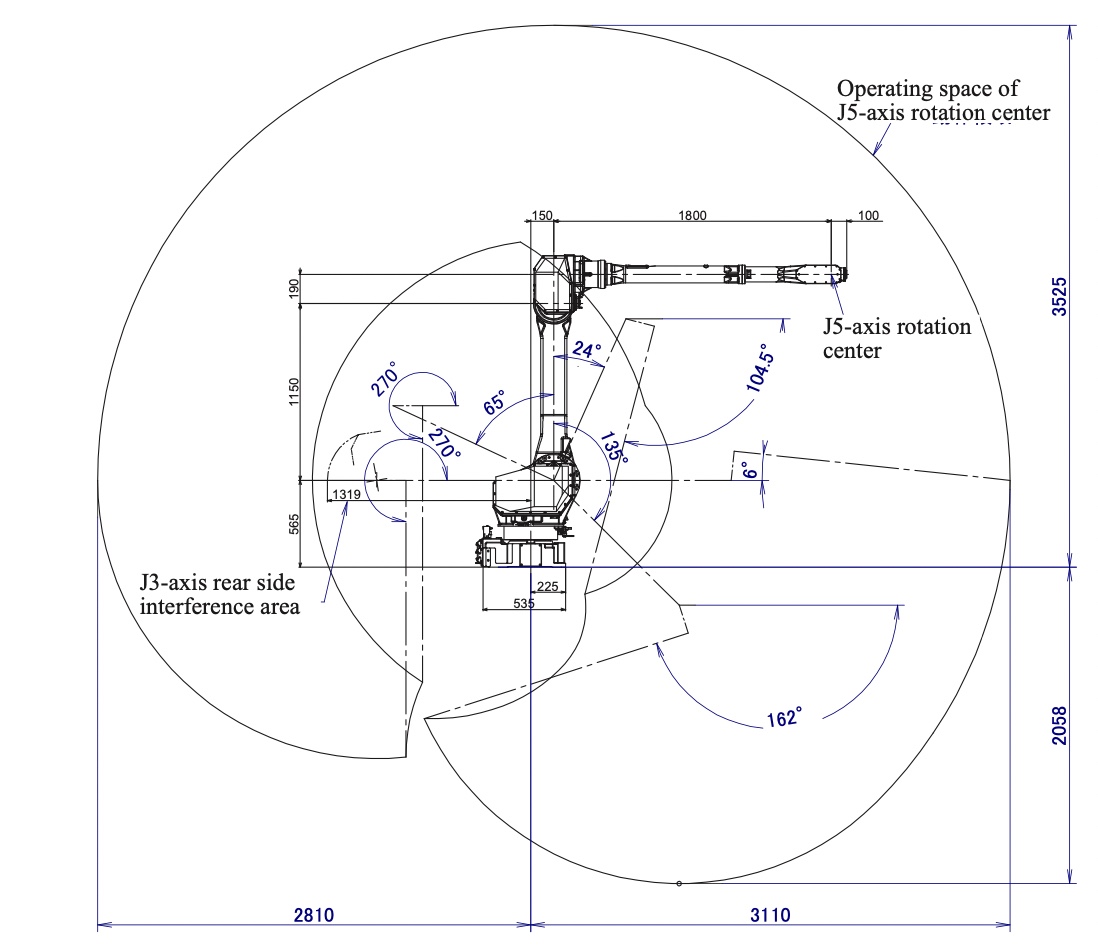

Robot Motion Range:
J1 ±360°
J2 ±225°
J3 ±432°
J4 ±400°
J5 ±280°
J6 ±360°
Applications:
Waterjet Robots
Dispensing Robots
Machine Loading Robots
Material Handling Robots
Packaging Robots
Palletizing Robots
Part Transfer Robots
Material Removal Robots
Arc Welding Robots
Fiberglass Cutting Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
