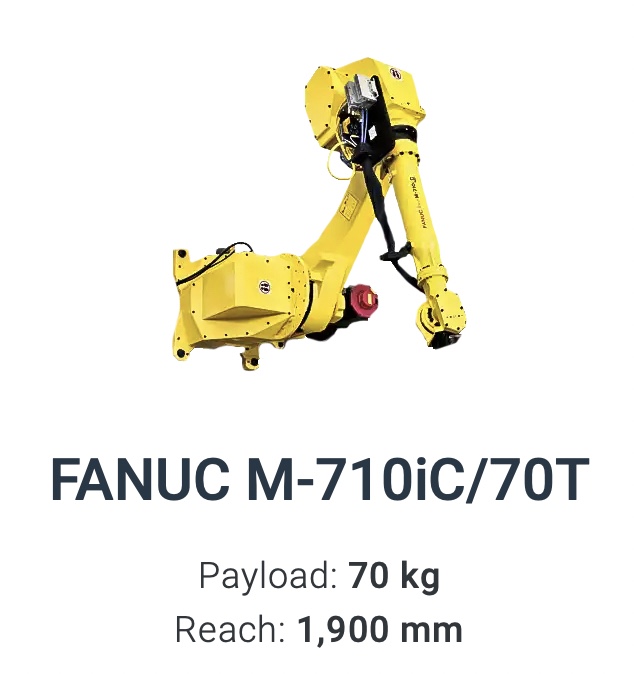

Fanuc M-710iC/70T is a gantry or top mount robot that runs on a variety of controllers based on your needs, such as the R-30iA, R-30iB Mate cabinet, R-30iB A-cabinet, R-30iB B-cabinet, or the R-30iB iPendant touch. The Robot is very versatile and can be used in a large range of applications:
Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 1900mm
Repeatability: ±0.07mm
Robot Mass: 410kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 3 m/s
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)

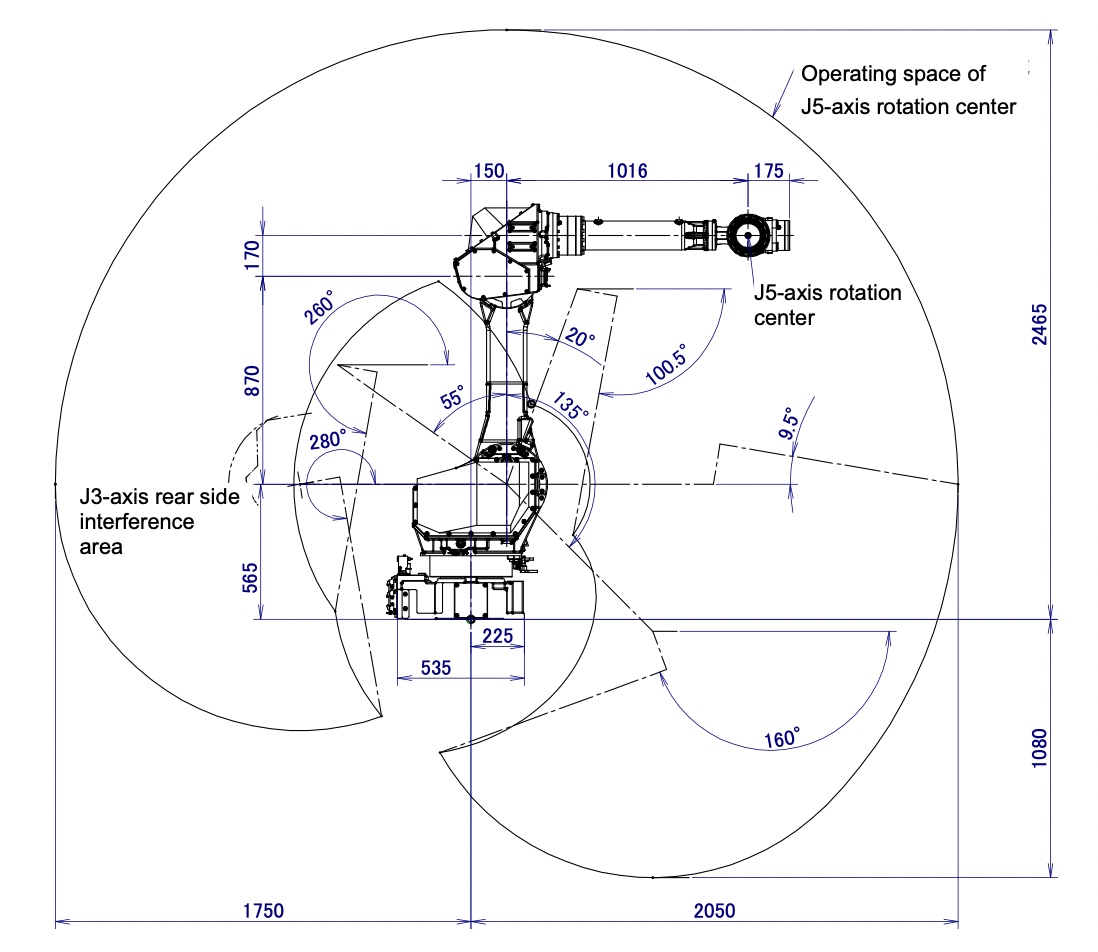

Robot Motion Range:
J1 +7.2mm° - 46.2mm°
J2 ±261°
J3 ±491°
J4 ±720°
J5 ±250°
J6 ±720°
Applications:
Thermal Spray Robots
Dispensing Robots
Injection Molding Robots
Machine Loading Robots
Machine Tending Robots
Material Handling Robots
Palletizing Robots
Fiberglass Cutting Robots
Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
