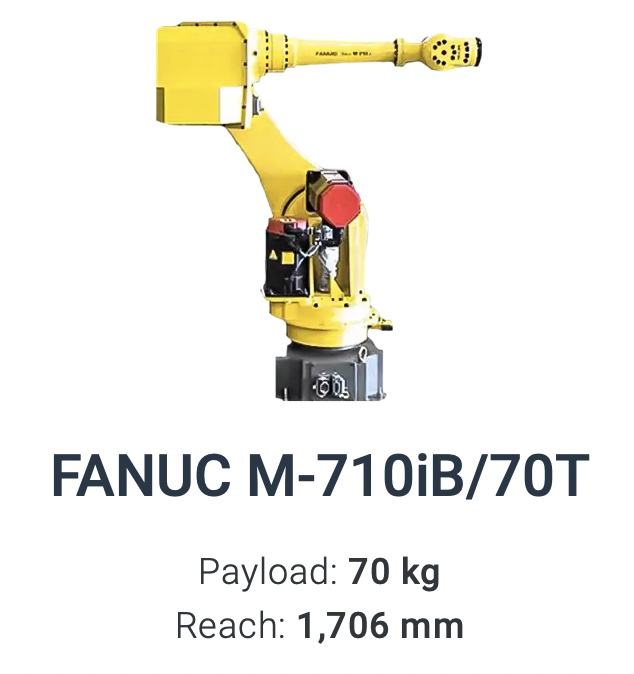

The Fanuc M-710iB/70T Robot is a legacy gantry robot that runs on the Fanuc RJ3iB Controller, also referred to as a top loader. Still a popular unit.
Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 1706mm
Repeatability: ±0.15mm
Robot Mass: 695kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 2.5 m/s
J2 120 °/s (2.09 rad/s)
J3 150 °/s (2.62 rad/s)
J4 240 °/s (4.19 rad/s)
J5 240 °/s (4.19 rad/s)
J6 340 °/s (5.93 rad/s)
Robot Motion Range:
J1 +7.2m° - 46.2m°
J2 ±130°
J3 +295° - 125°
J4 ±270°
J5 ±125°
J6 ±360°
Applications:
Dispensing Robots
Machine Tending Robots
Material Handling Robots
Fiberglass Cutting Robots
Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
