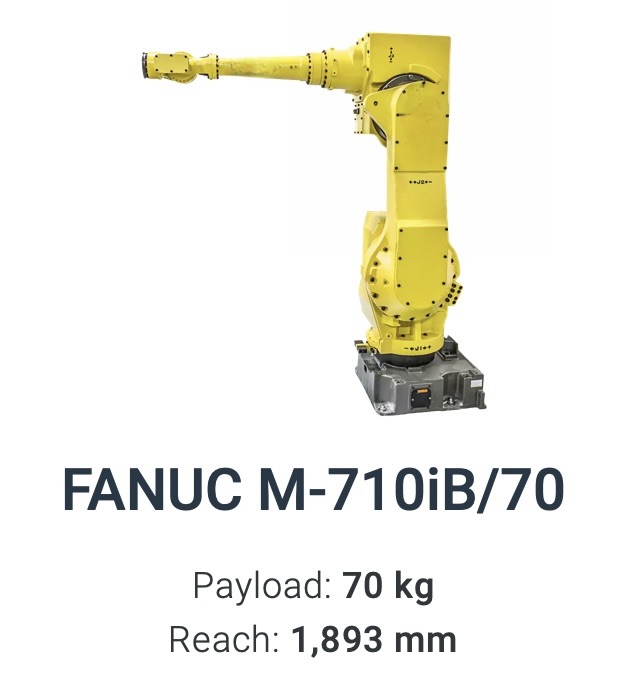

The Fanuc M-710iB/70 Robot is a 6 axis legacy robot that runs on the Fanuc RJ3iB Controller.
Robot Specifications:
Axes: 6
Payload: 70kg
H-Reach: 1893mm
Repeatability: ±0.07mm
Robot Mass: 745kg
Structure: Articulated
Mounting: Floor, Inverted
Robot Motion Speed:
J1 160 °/s (2.79 rad/s)
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)
Robot Motion Range:
J1 +320° - 360°
J2 ±120°
J3 ±376°
J4 ±540°
J5 ±250°
J6 ±720°
Applications:
Waterjet Robots
Dispensing Robots
Material Handling Robots
Palletizing Robots
Part Transfer Robots
Assembly Robots
Cutting Robots
Material Removal Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
