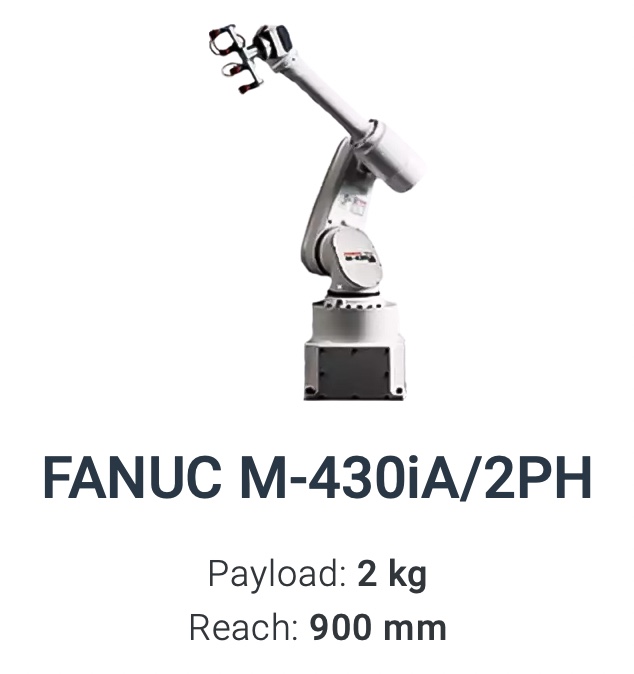

The Fanuc M-430iA/2PH is designed for assembly, part transfer and packaging applications it is food grade certified and runs on the Fanuc R30iB Controller.
Robot Specifications:
Axes: 6
Payload: 2kg
H-Reach: 900mm
Repeatability: ±0.5mm
Robot Mass: 57kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 300 °/s (5.24 rad/s)
J2 320 °/s (5.59 rad/s)
J3 320 °/s (5.59 rad/s)
J4 500 °/s (8.73 rad/s)
J5 500 °/s (8.73 rad/s)
J6 1700 °/s (29.67 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±230°
J3 ±383°
J4 ±380°
J5 ±300°
J6 ±540°
Applications:
Assembly Robots
Order Picking Robots
Packaging Robots
Part Transfer Robots
Pick and Place Robots
