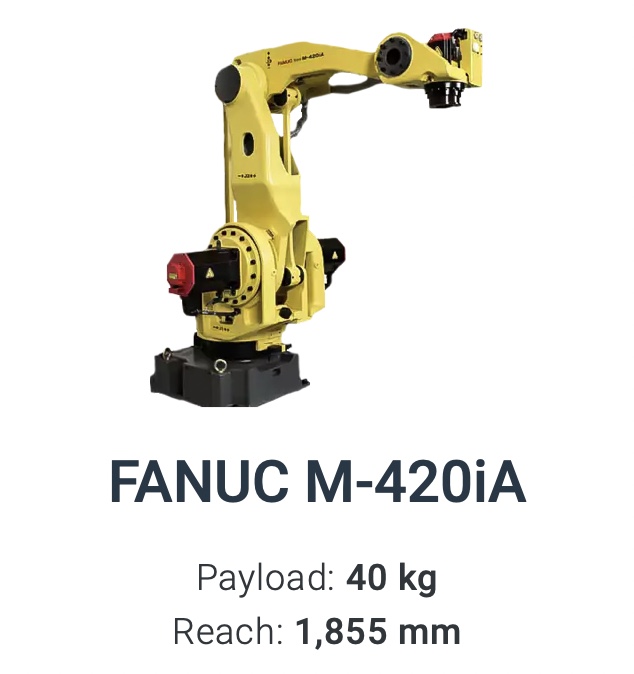

The FANUC M-420iA industrial robot is designed for several types of high-speed manufacturing applications including packaging, palletizing, material handling, machine load/unload, and parts transfer. It has 4 axis of motion and a 40kg payload, the M420iA runs on the Fanuc Rj3iB controller is an excellent robotics system, and moves with speed and accuracy.

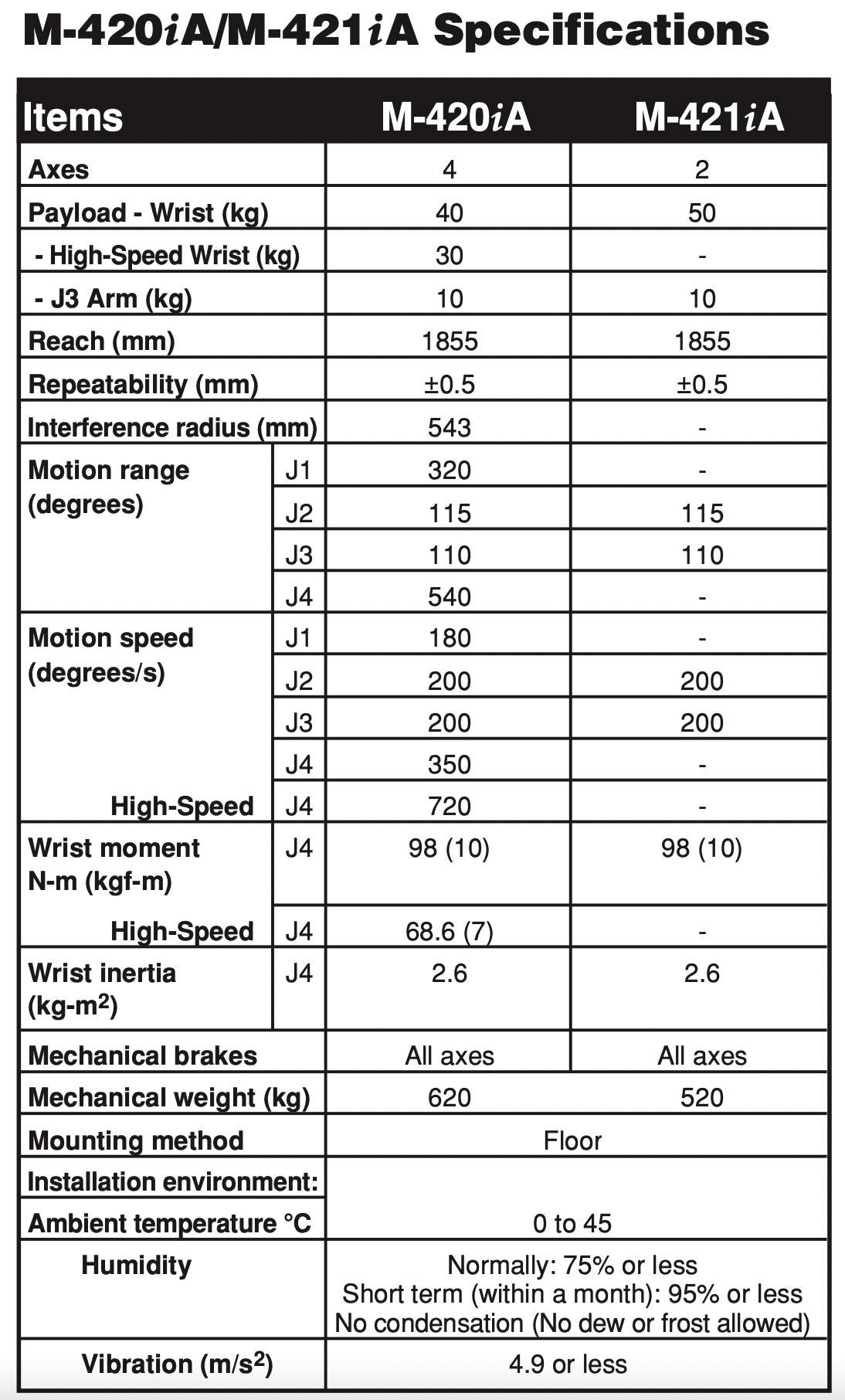

Robot Specifications:

Axes: 4

Payload: 40kg

H-Reach: 1855mm

Repeatability: ±0.5mm

Robot Mass: 620kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 200 °/s (3.49 rad/s)

J3 200 °/s (3.49 rad/s)

J4 350 °/s (6.11 rad/s)


Robot Motion Range:

J1 ±160°

J2 +80° - 35°

J3 +10° - 100°

J4 ±270°

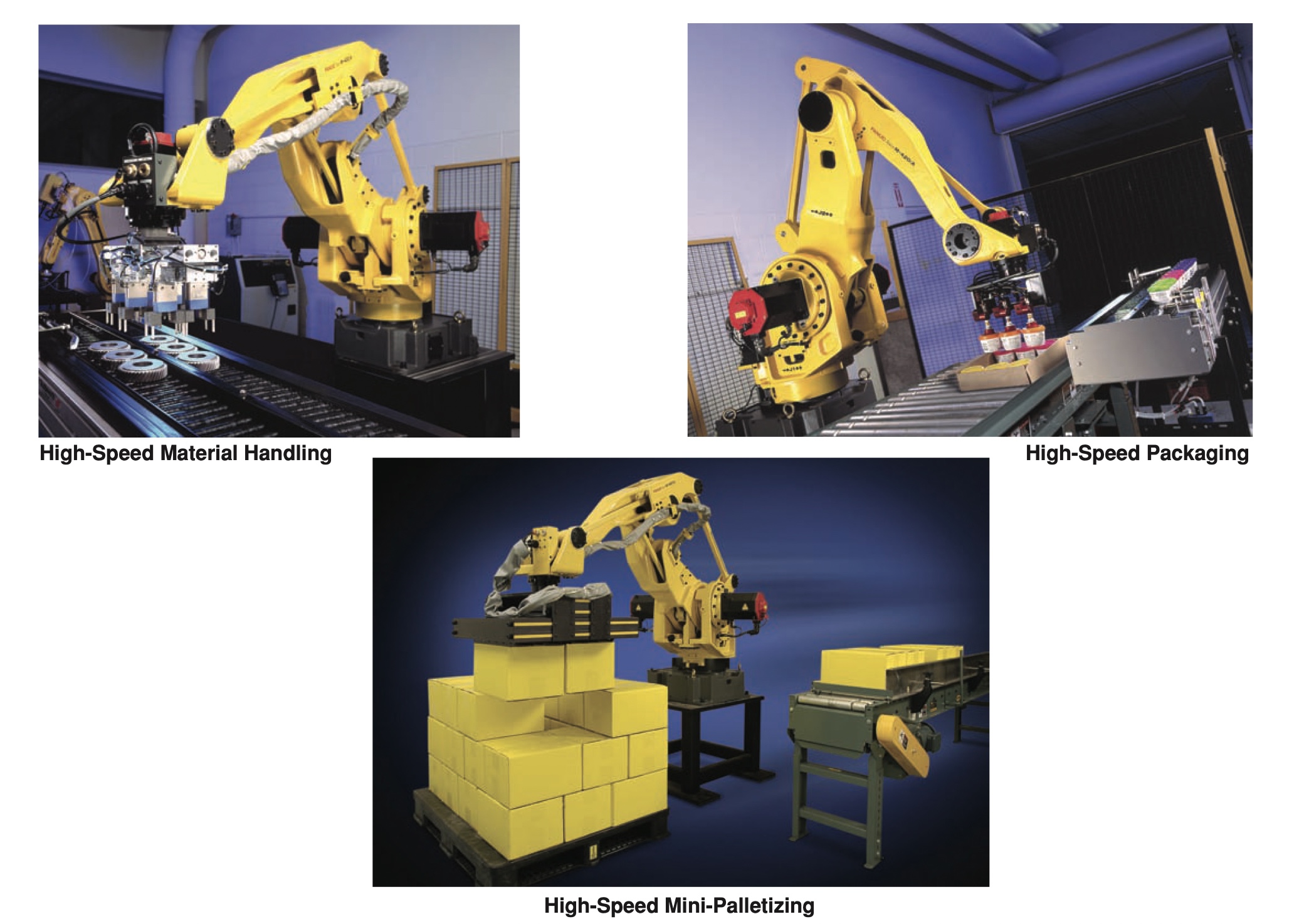

Applications:

Palletizing Robots

Packaging Robots

Machine Loading Robots




Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
