PAYLOAD 110 kg
REACH 2,403 mm
The Fanuc M-410iC/110 robot is the smallest in this new series of Fanuc palletizing robots. It runs on the Fanuc R30iB controller platform. With lighter payload this robot is designed to run faster than its bigger variants.
Robot Specifications:
Axes: 4
Payload: 110 kg

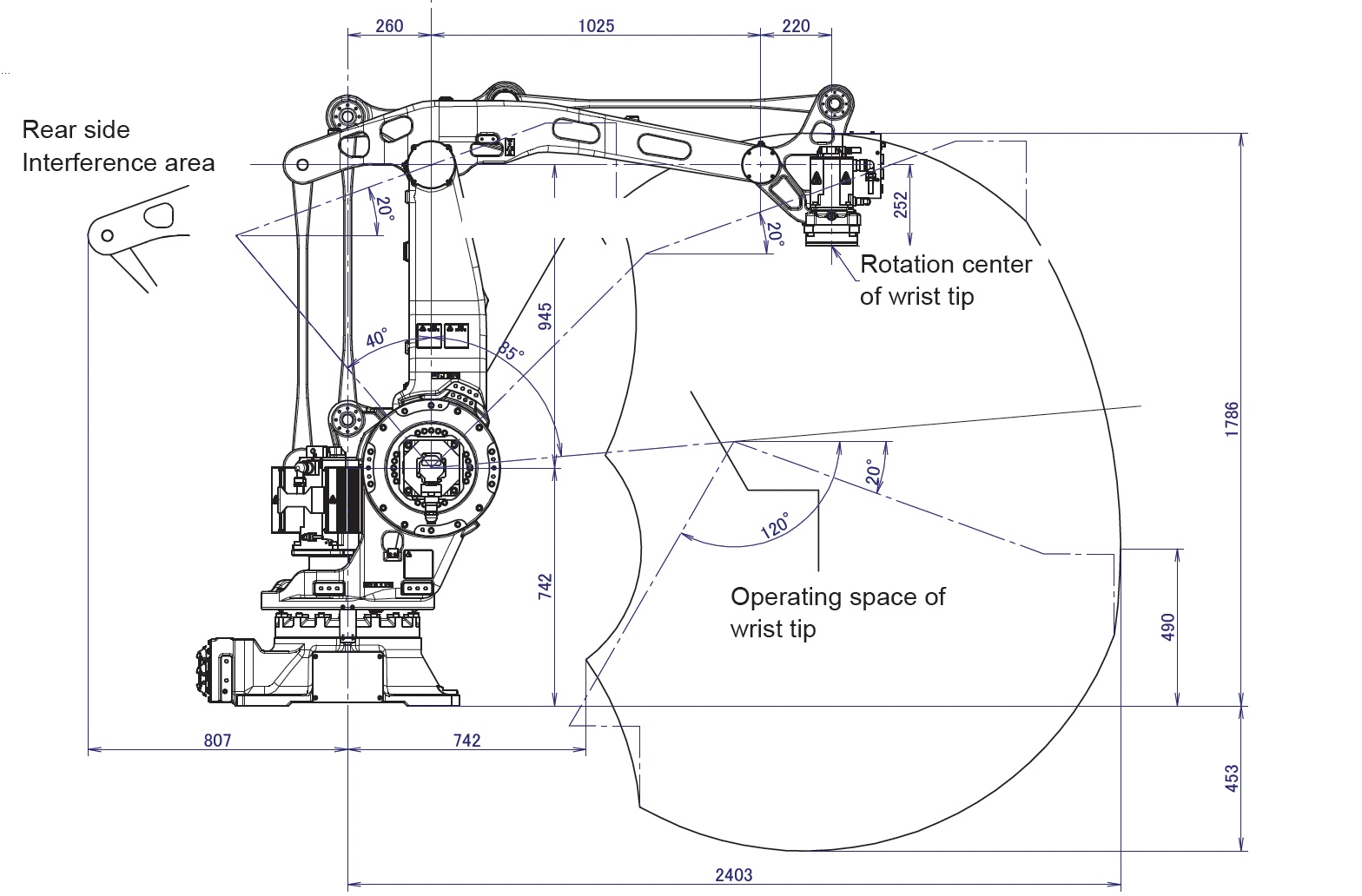

H-Reach: 2403mm
Repeatability: ±0.5mm
Robot Mass: 1030kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 145°/s (1.48 rad/s)
J2 130°/s (1.48 rad/s)
J3 140°/s (1.48 rad/s)
J4 420 °/s (3.49 rad/s)
Robot Motion Range:
J1 ±370°
J2 ±125°
J3 ±140°
J4 ±720°
Applications:
Material Handling Robots
Packaging Robots
Palletizing Robots
