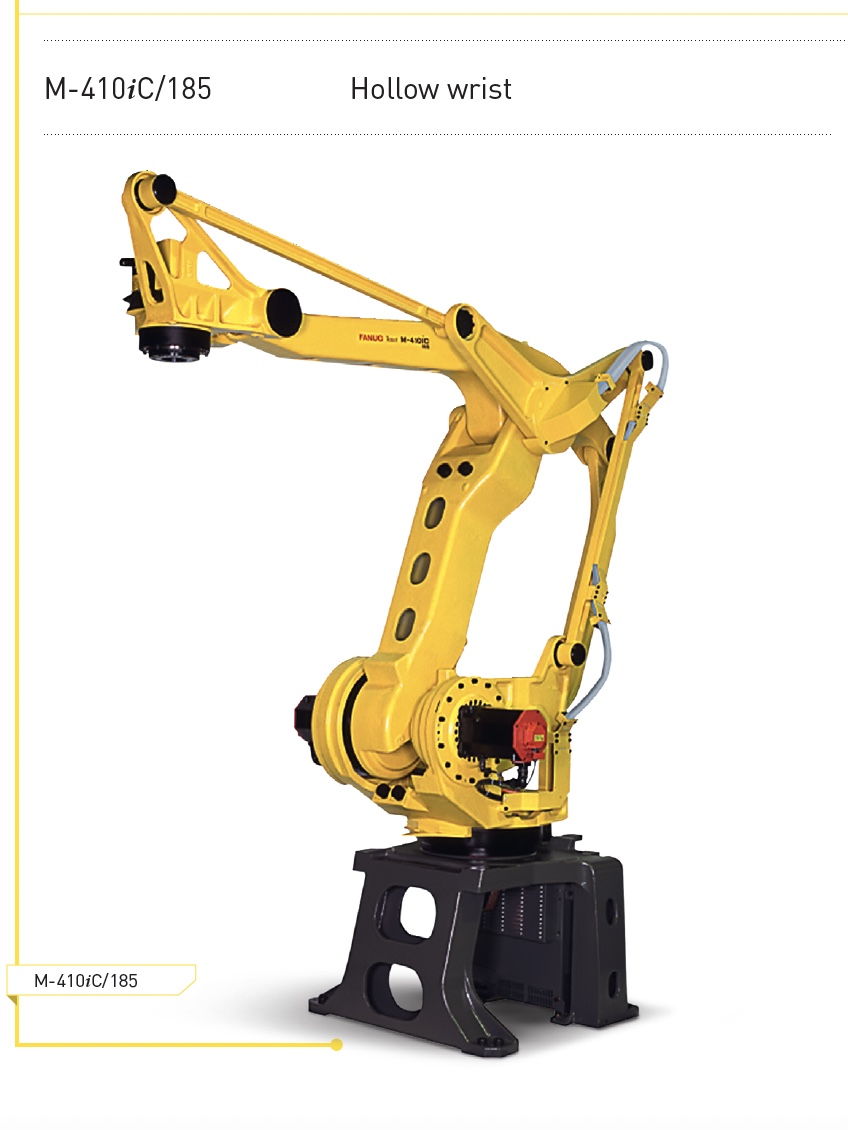

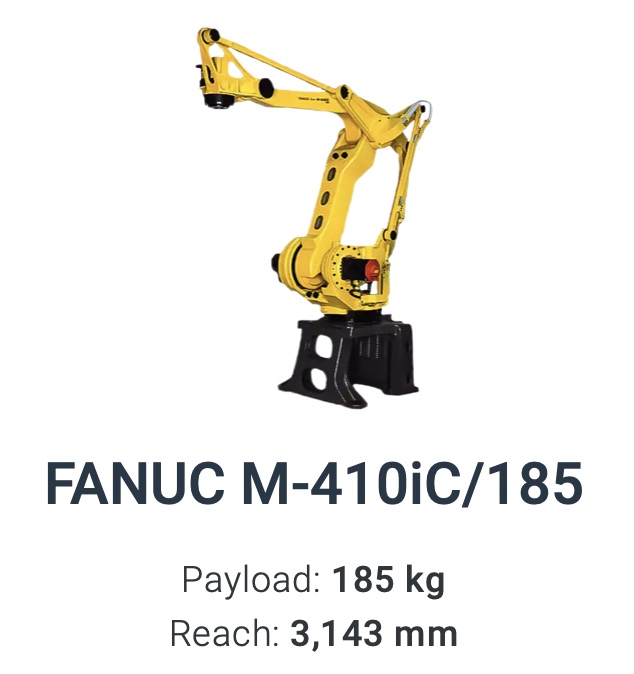

The Fanuc M-410iC/185 is the newest generation of palletizing robots as of this writing. It is a 4 axis robot and runs on the Fanuc R30iB Controller Platform.
Robot Specifications:
Axes: 4
Payload: 185kg
H-Reach: 3143mm
Repeatability: ±0.5mm
Robot Mass: 1600kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 140 °/s (2.44 rad/s)
J2 140 °/s (2.44 rad/s)
J3 140 °/s (2.44 rad/s)
J4 305 °/s (5.32 rad/s)
Robot Motion Range
J1 ±360°
J2 ±144°
J3 ±136°
J4 ±720°
Applications:
Palletizing Robots
Part Transfer Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
