The Fanuc M-410iB/700 is the heaviest palletizing robot in this series of robots with a payload of 700 kg. Depending on the year of manufacture the robot can run on the Fanuc R-30iA controller or the Fanuc R30iB or R-30iB Plus A or B style cabinet controllers. It is a beast in category. Designed specifically for the job by the company that built the world's first dedicated palletizing robot, the M-410 series increases throughput on palletizing and handling applications. Boasting the best payload capacity of the range, this robot will lift up to 700 kg and is equipped with a hollow wrist to minimize the risk of cable snagging and reduce maintenance.

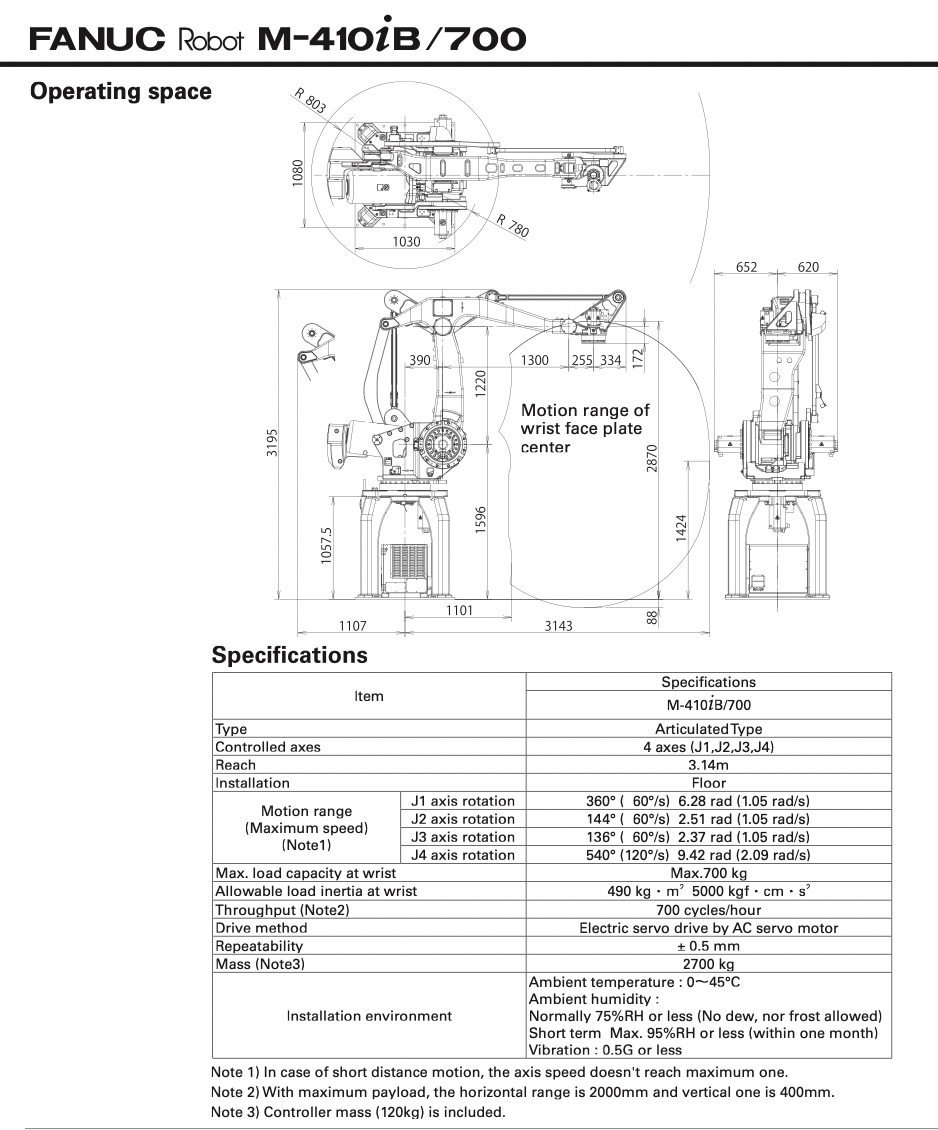

Robot Specifications:
Axes: 4
Payload: 700kg
H-Reach: 3143mm
Repeatability: ±0.5mm
Robot Mass: 2700kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 60 °/s (1.05 rad/s)
J2 60 °/s (1.05 rad/s)
J3 60 °/s (1.05 rad/s)
J4 120 °/s (2.09 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±144°
J3 ±136°
J4 ±540°
Applications:
Palletizing Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
