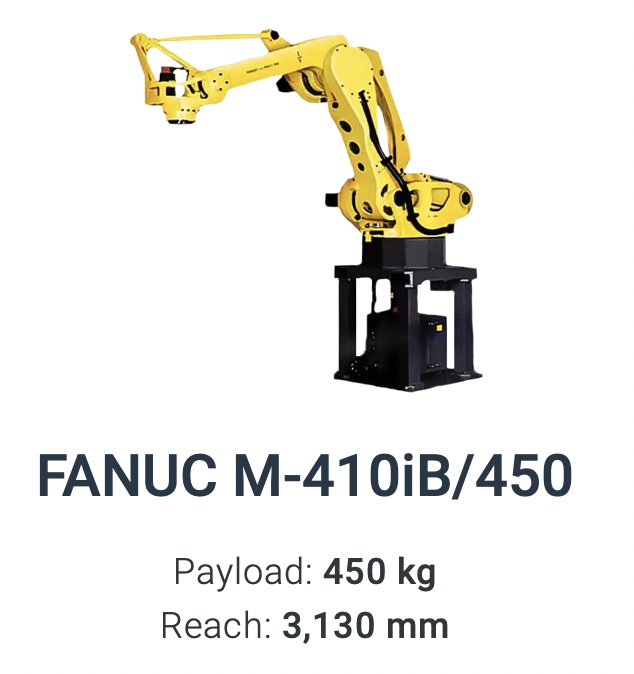

The M-410iB/450 is a heavy payload palletizing robot with 4 axis of movement, depending on date of manufacture they run on the Fanuc RJ3iB, R30iA, R30iB-A cabinet or R-30iB-B Cabinet Controllers.

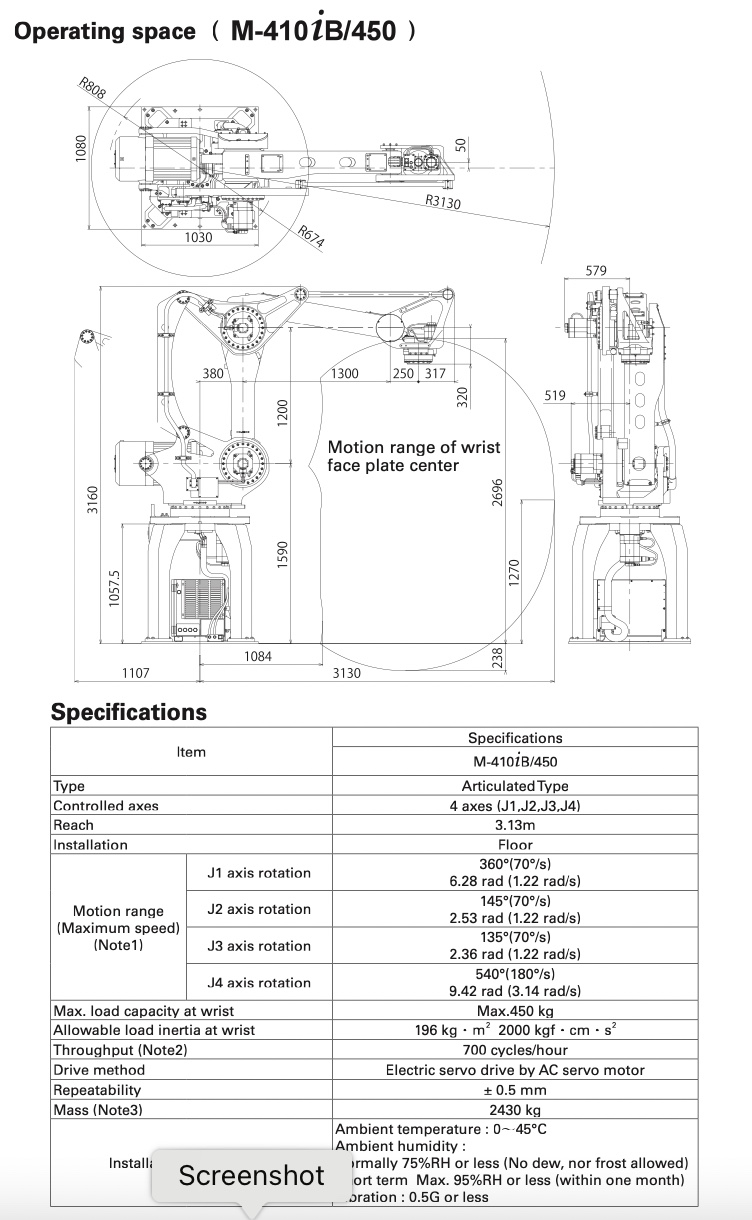

Robot Specifications
Axes: 4
Payload: 450kg
H-Reach: 3130mm
Repeatability: ±0.5mm
Robot Mass: 2430kg
Structure: Vertical Jointed-Arm
Mounting: Floor
Robot Motion Speed:
J1 70 °/s (1.22 rad/s)
J2 70 °/s (1.22 rad/s)
J3 70 °/s (1.22 rad/s)
J4 180 °/s (3.14 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±145°
J3 ±135°
J4 ±540°
Applications:
Palletizing Robots
Material Handling Robots
Machine Loading Robots
Machine Tending Robots
Part Transfer Robots
Injection Molding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
