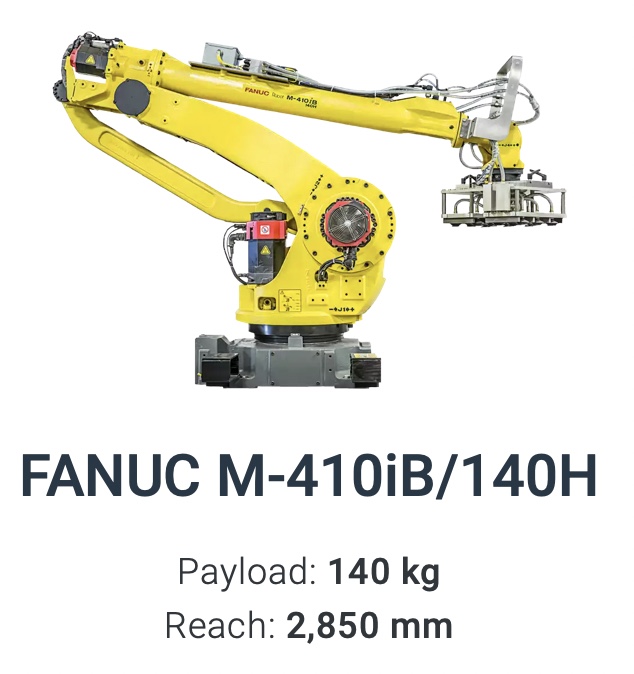

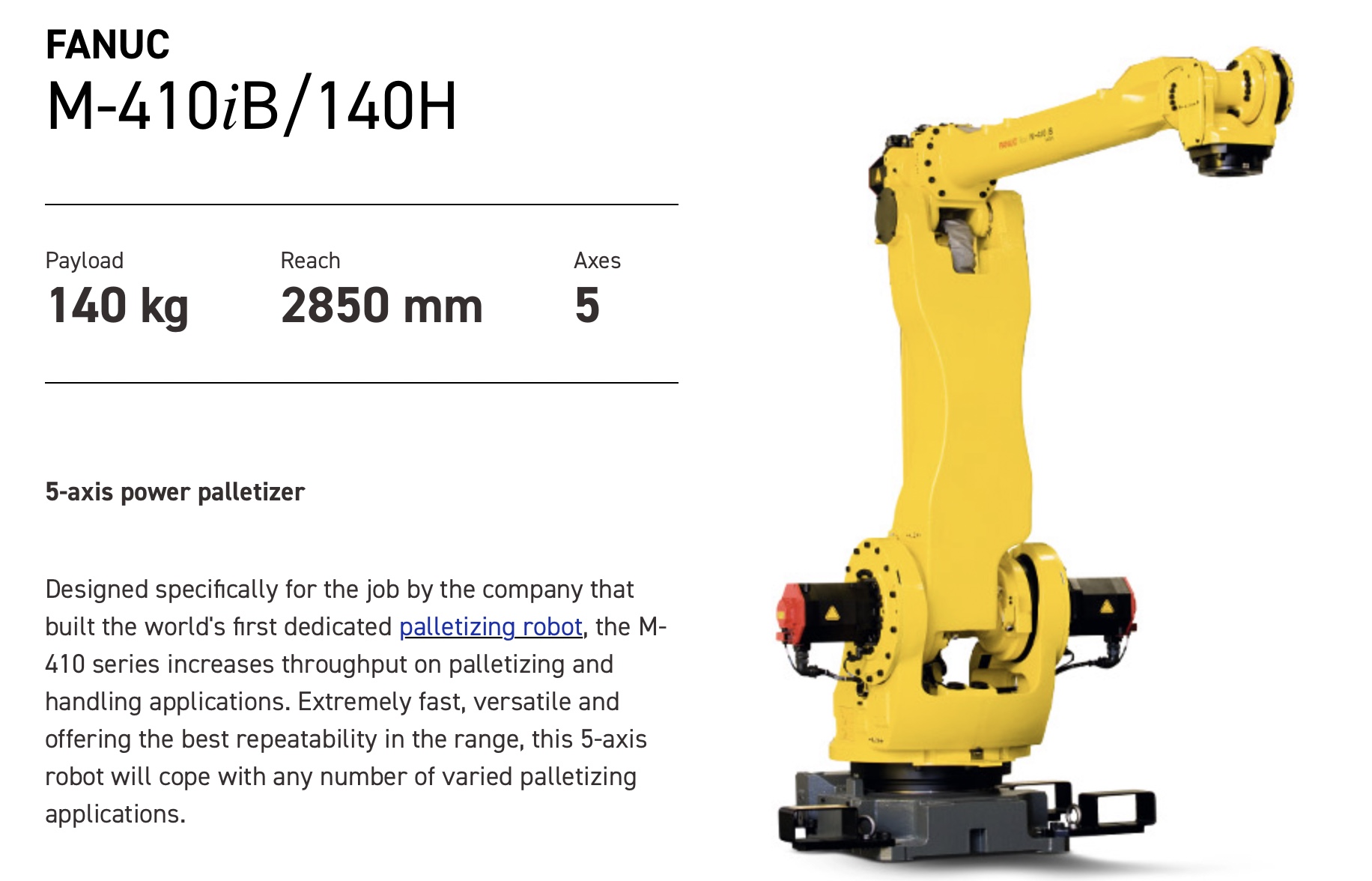

The M-410iB/140H is a high speed 5 axis 140kg capacity palletizing robot. Depending on the date of manufacture the M-410iB robot runs on the Fanuc R30iA or the Fanuc R30iB Controller.
Robot Specifications:
Axes: 5
Payload: 140kg
H-Reach: 2850mm
Repeatability: ±0.2mm
Robot Mass: 1200kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 140 °/s (2.44 rad/s)
J2 115 °/s (2.01 rad/s)
J3 135 °/s (2.36 rad/s)
J4 135 °/s (2.36 rad/s)
J5 420 °/s (7.33 rad/s)

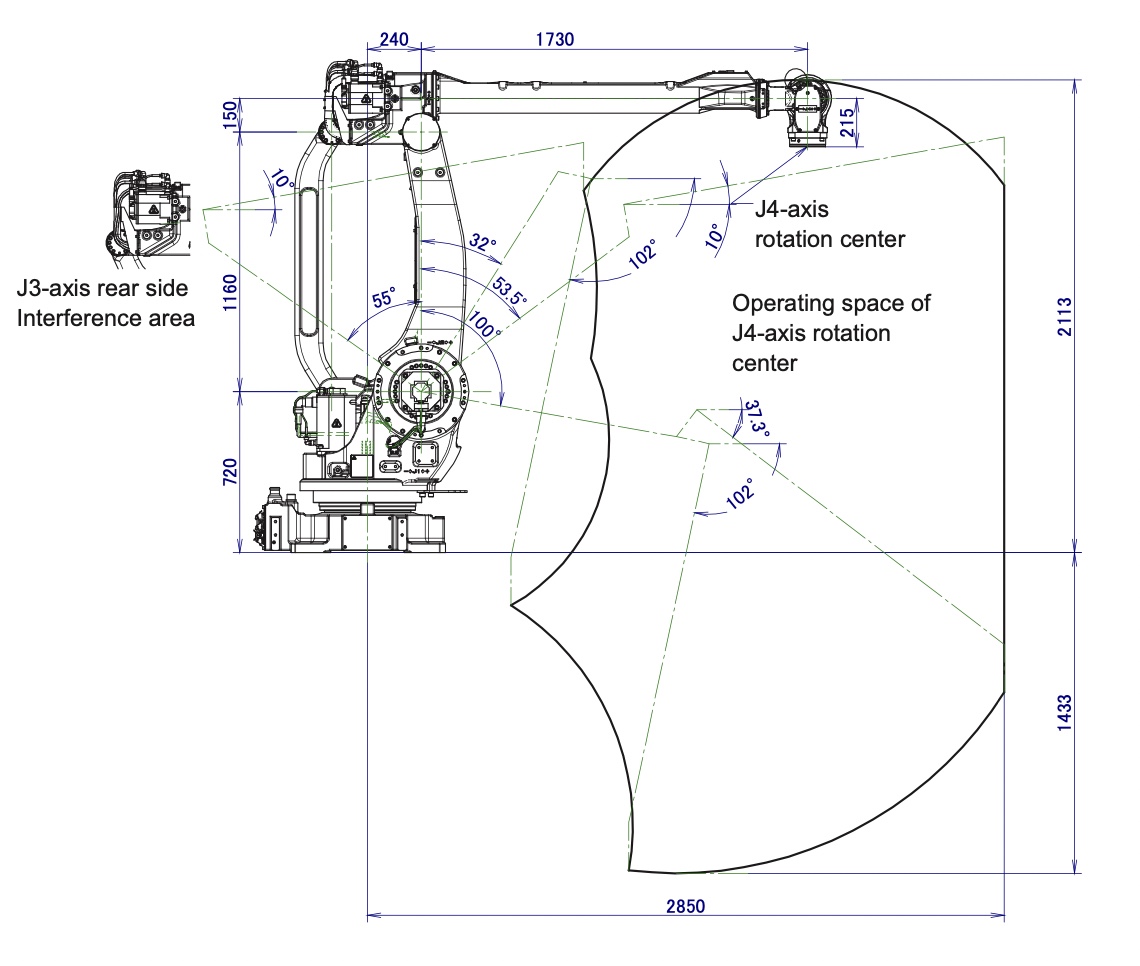

Robot Motion Range:
J1 ±360°
J2 ±155°
J3 ±112°
J4 ±20°
J5 ±720°
Applications:
Material Handling Robots
Palletizing Robots
Pick and Place Robots
