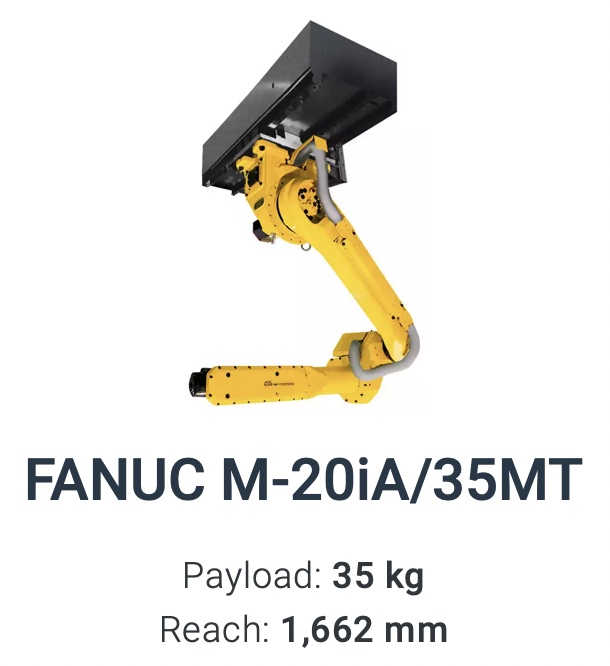

The Fanuc M-20iA/35MT is a high inertia top mount gantry robot that runs on the R30iB Robot controller platform. Super versatile for a variety of applications such as machine loading and unloading.
Robot Specifications:
Axes: 6
Payload: 35kg
H-Reach: 1662mm
Repeatability: ±0.08mm
Robot Mass: 252kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 180 °/s (3.14 rad/s)
J2 180 °/s (3.14 rad/s)
J3 200 °/s (3.49 rad/s)
J4 350 °/s (6.11 rad/s)
J5 350 °/s (6.11 rad/s)
J6 400 °/s (6.98 rad/s)
Robot Motion Range:
J1 ±370°
J2 ±260°
J3 ±461°
J4 ±400°
J5 ±280°
J6 ±900°
Applications:
Dispensing Robots
Machine Tending Robots
Material Handling Robots
Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
