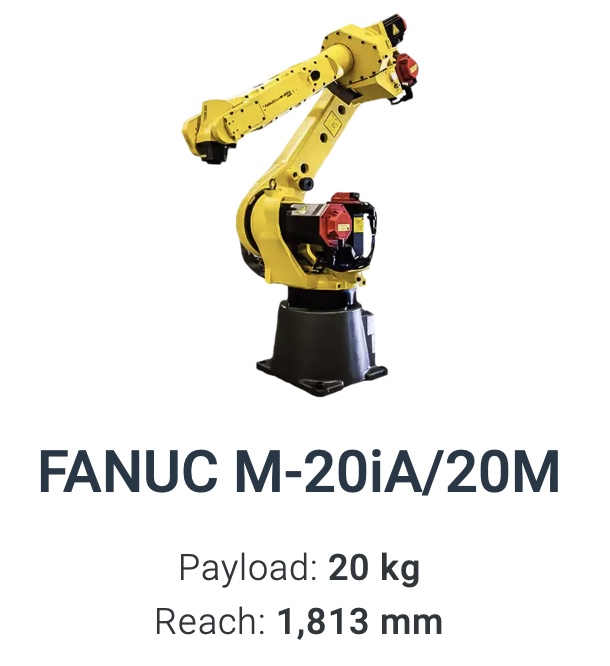

Fanuc M-20iA/20M high inertia robot, 6 axis, R30iB Controller Platform. It is a newer model robot with higher joint speeds. The FANUC M20iA/20M is very versatile and can provide efficient solutions to assembly, packaging, machining, and several other applications. Its mighty robot in a compact size. Don't break your back put this robot on the attack!

Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1813mm

Repeatability: ±0.08mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 195 °/s (3.4 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 405 °/s (7.07 rad/s)

J5 405 °/s (7.07 rad/s)

J6 615 °/s (10.73 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±260°

J3 +460° - 6°

J4 ±400°

J5 ±280°

J6 ±900°

Applications:

Assembly Robots

Deburring Robots

Machine Loading Robots

Machine Tending Robots

Material Removal Robots

Order Picking Robots

Packaging Robots

Part Transfer Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
