The Fanuc M-20iA/12L robot can be mounted on the floor, angle, wall, or ceiling. This robot comes equipped with the advanced R-30iB controller and has a reach of 2009mm, making it a long-arm with a heavy lift. A long arm hollow wrist robot with a wide variety of applications across many industries.

Robot Specifications:

Axes: 6

Payload: 12kg

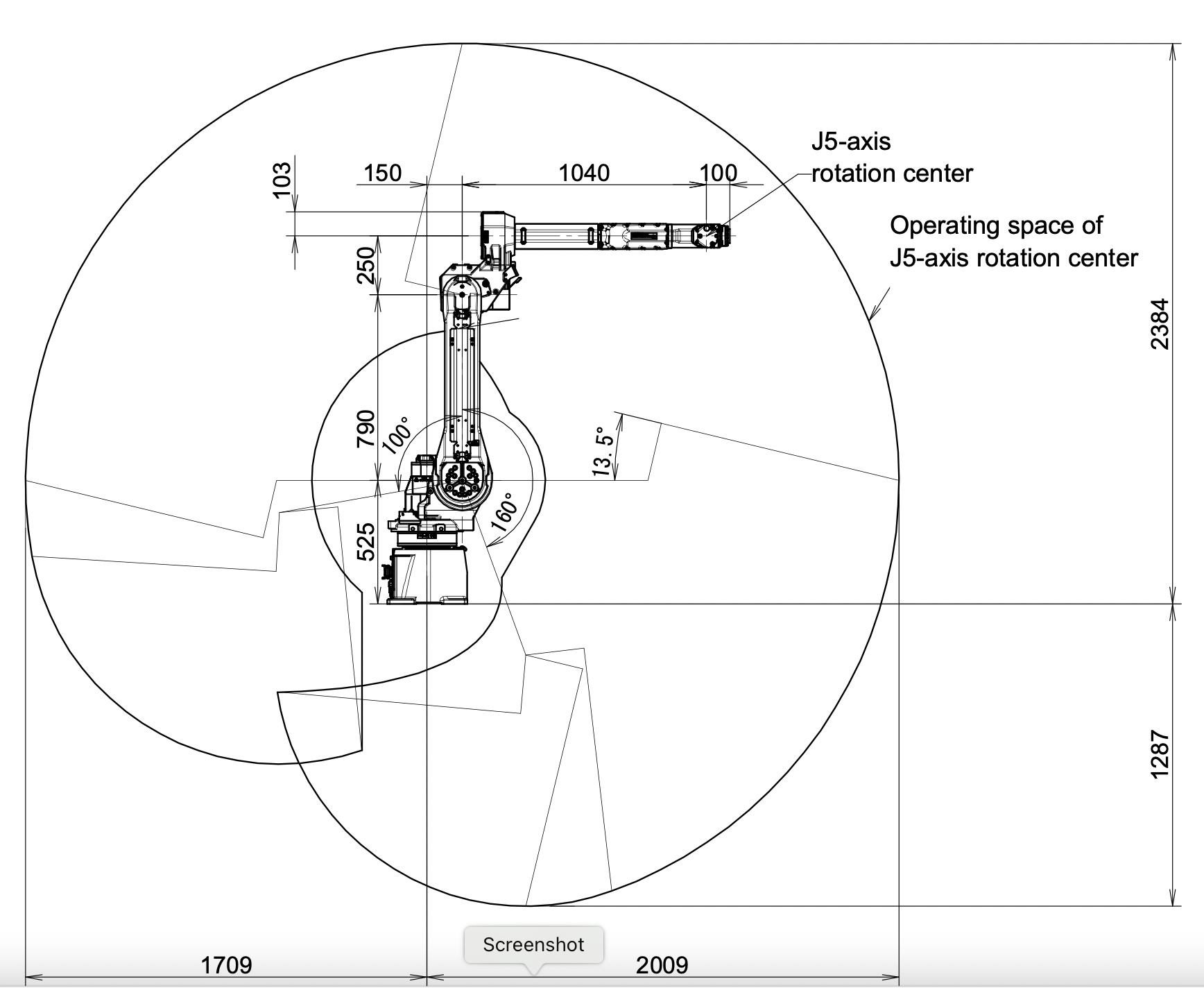

H-Reach: 2009mm

Repeatability: ±0.08mm

Robot Mass: 250kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 200 °/s (3.49 rad/s)

J2 175 °/s (3.05 rad/s)

J3 190 °/s (3.32 rad/s)

J4 430 °/s (7.5 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

Robot Motion Range:

J1 ±370°

J2 ±260°

J3 +460° - 6°

J4 ±400°

J5 ±360°

J6 ±900°

Applications:

Material Handling Robots

Machine Loading Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
