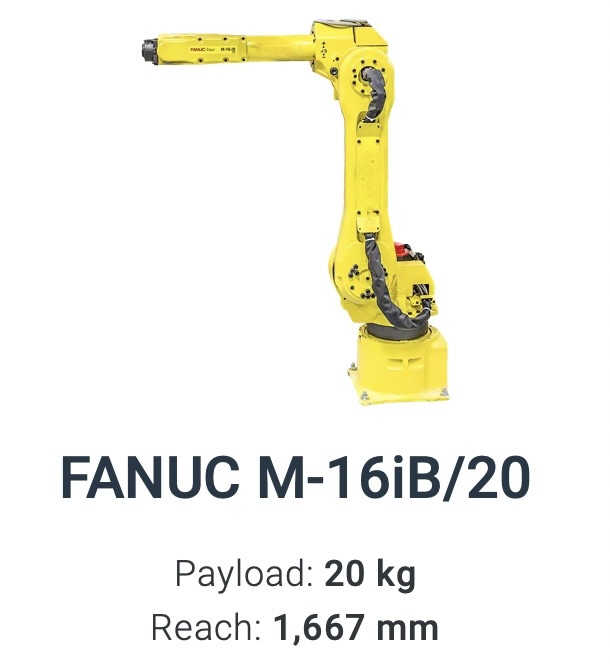

The Fanuc M-16iB/20 is designed to perform many material handling applications, the FANUC M-16iB/20 features a payload capacity of 20 kilograms a reach of 1,667 mm and runs on the RJ3iB or R30iA Controller depending on the date of manufacture. A very popular robot amongst or customers so we strive to keep them in stock.
Robot Specifications:
Axes: 6
Payload: 20kg
H-Reach: 1667mm
Repeatability: ±0.08mm
Robot Mass: 220kg
Structure: Articulated
Mounting: Floor, Inverted, Angle:
Robot Motion Speed:
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range:
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°
Applications:
Material Handling Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
