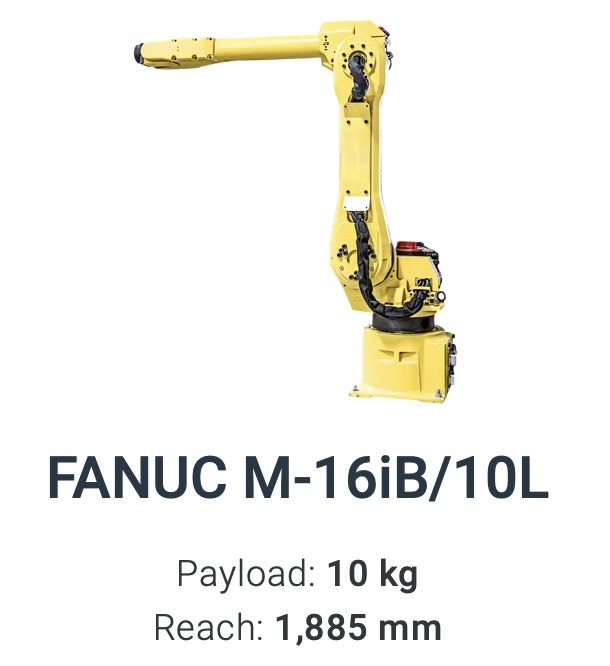

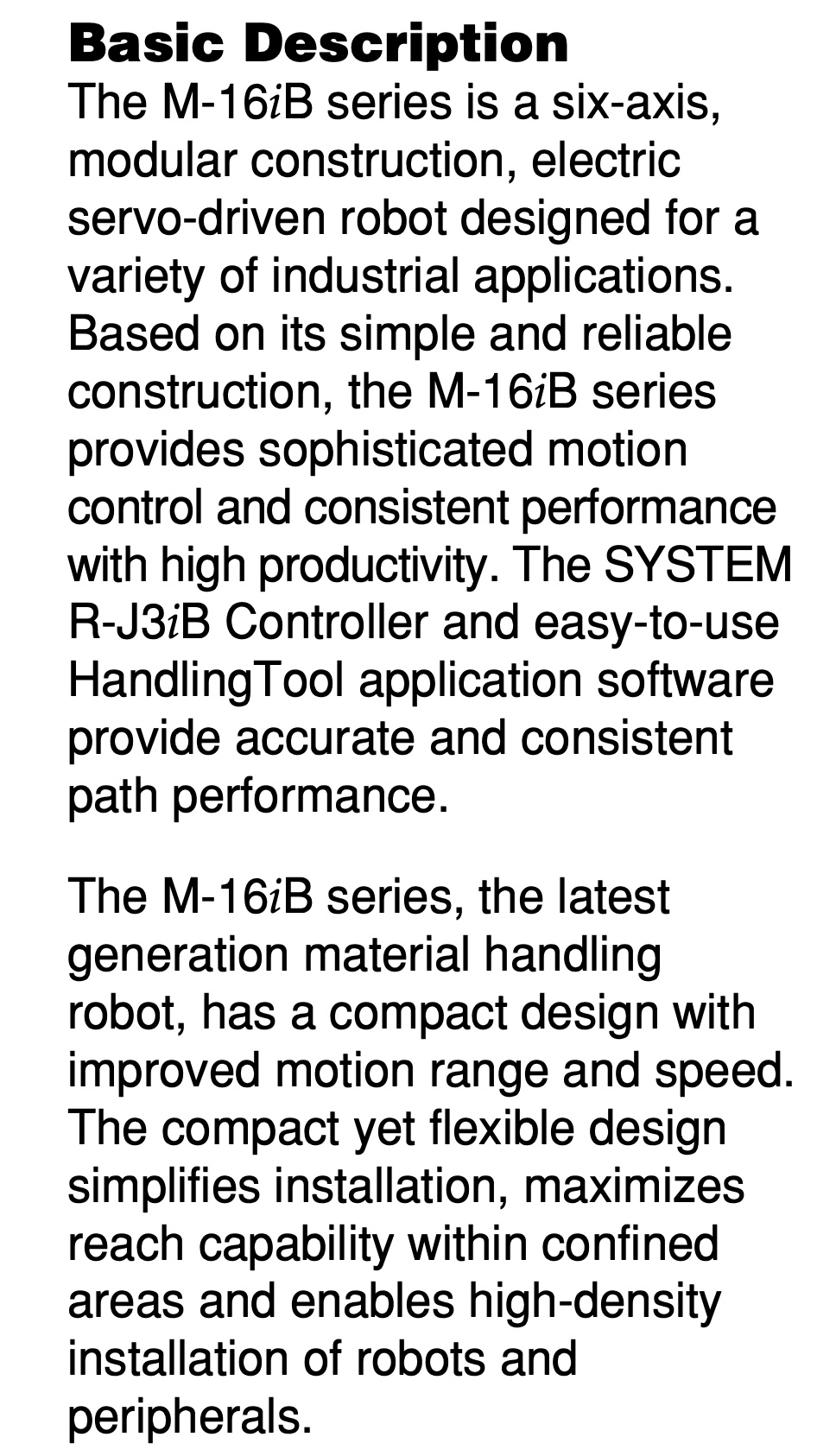

The M-16iB/10L runs on the RJ3iB Controller it is a legacy robot. It's a full six axis robot. It is the long reach version of the Fanuc M-16iB series. Applications include material handling robots, machine tending robots, dispensing robots to name a few.

Robot Specifications:

Axes: 6

Payload: 10kg

H-Reach: 1885mm

Repeatability: ±0.1mm

Robot Mass: 230kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)

Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +285° - 170°

J4 ±200°

J5 ±140°

J6 ±450°

Applications:

Material Handling Robots

Dispensing Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
