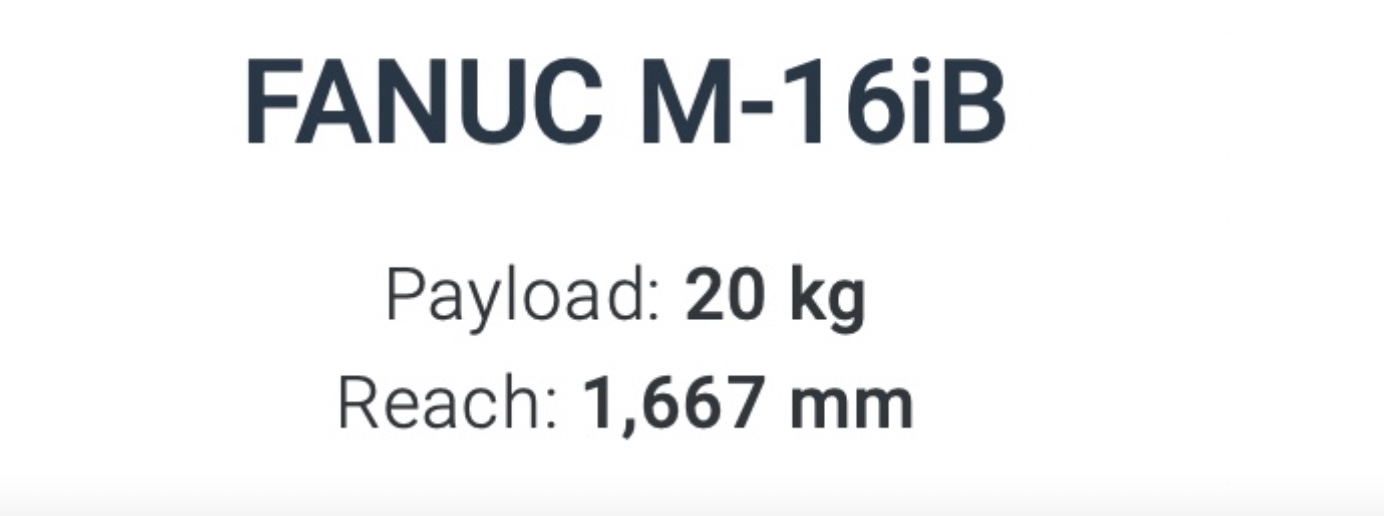

The FANUC M-16iB is a six-axis robot designed for a variety of industrial applications. Based on its simple and reliable construction, the FANUC M16iB runs on the Fanuc RJ3iB control. This robot is a legacy robot, yet there are still many working every day full time in the field.


Robot Specifications:

Axes: 6

Payload: 20kg

H-Reach: 1667mm

Repeatability: ±0.08mm

Robot Mass: 270kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Applications:

Material Handling Robots

Assembly Robots

Dispensing Robots

Flux Cored Welding Robots

Laser Cutting Robots

Material Removal Robots

Sanding Robots


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
