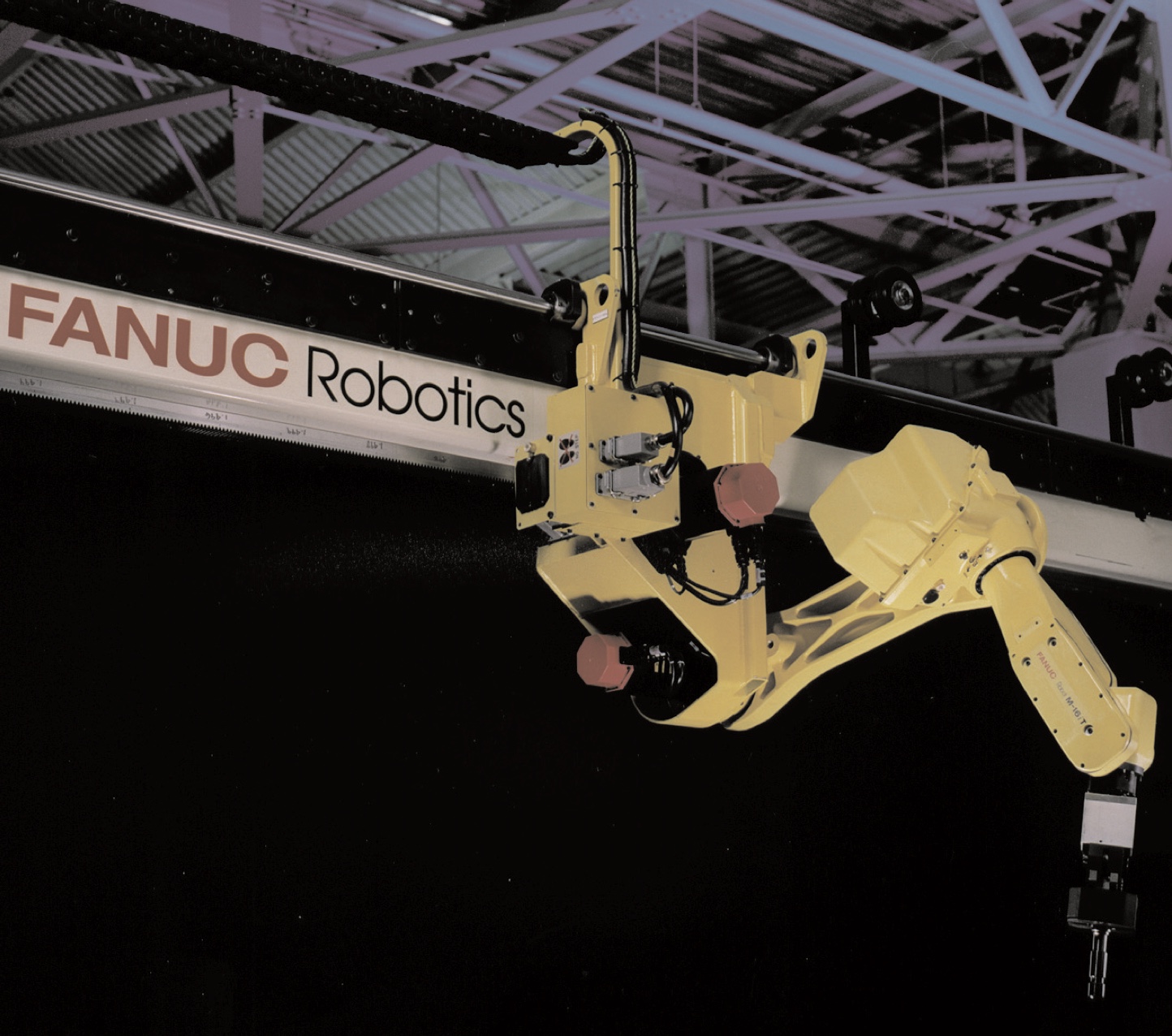

The FANUC M16iAT a legacy robot is an overhead-mounted robot designed for material handling and machine tending applications. This unit runs on the RJ3iB Controller. Designed to run on an overhead gantry system it is an excellent machine load & unloading robot.
Robot Specifications:
Axes: 6
Payload: 16kg
H-Reach: 1605mm
Repeatability: ±0.08mm
Robot Mass: 138kg
Structure: Articulated
Mounting: Inverted
Robot Motion Speed:
J1 2 m/s
J2 140 °/s (2.44 rad/s)
J3 140 °/s (2.44 rad/s)
J4 330 °/s (5.76 rad/s)
J5 330 °/s (5.76 rad/s)
J6 450 °/s (7.85 rad/s)
Robot Motion Range:
J1 +2.4m° - 21.5m°
J2 ±300°
J3 ±481.2°
J4 ±400°
J5 ±280°
J6 ±900°
Applications:
Material Handling Robots
Part Transfer Robots
Pick and Place Robots
Assembly Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
