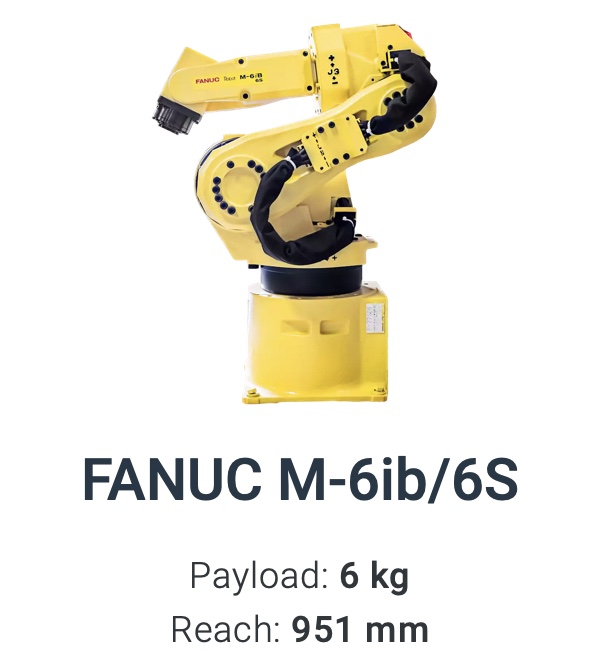

The FANUC M-6iB/6S is a short arm robot arm designed for compact, confined spaces. The M6iB/6S RJ3iB robot arm performs material handling applications. The robot can be mounted on the floor or a riser upright, inverted or on an angle. The M-6iB/6S is a 6 axis robot.
Robot Specifications:
Axes: 6
Payload: 6kg
H-Reach: 951mm
Repeatability: ±0.08mm
Robot Mass: 135kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 200 °/s (3.49 rad/s)
J2 200 °/s (3.49 rad/s)
J3 260 °/s (4.54 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 720 °/s (12.57 rad/s)
Robot Motion Range:
J1 ±170°
J2 ±125°
J3 ±155°
J4 ±190°
J5 ±140°
J6 ±360°
Applications:
Material Handling Robots
