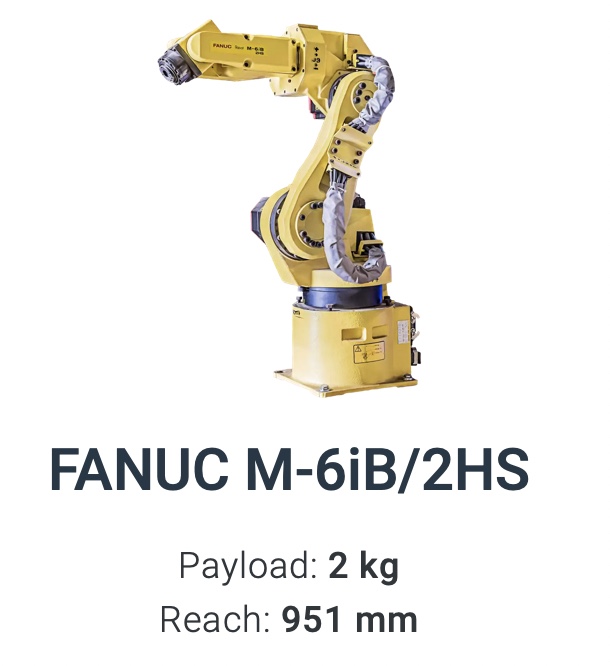

The Fanuc M-6iB/2HS is a 6 axis robot runs on the RJ3iB Controller. Suitable for many applications such as machine tending, material handling, assembly, picking and packing, material removal, cleanroom operations, testing and sampling, and dispensing.

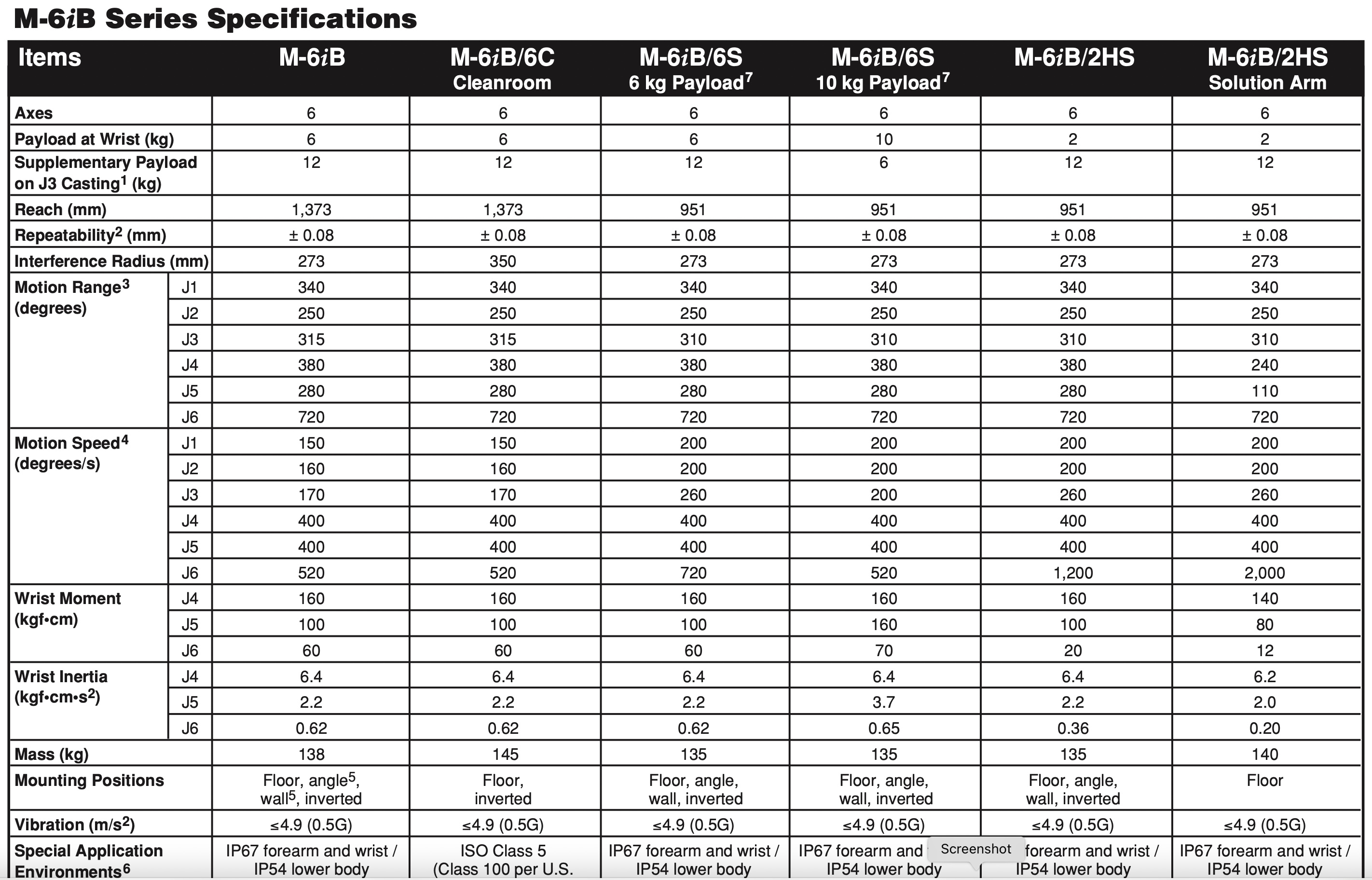

Axes: 6
Payload: 2kg
H-Reach: 951mm
Repeatability: ±0.08mm
Robot Mass: 135kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
J1 200 °/s (3.49 rad/s)
J2 200 °/s (3.49 rad/s)
J3 260 °/s (4.54 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 1200 °/s (20.94 rad/s)
J1 ±340°
J2 ±250°
J3 ±310°
J4 ±380°
J5 ±280°
J6 ±720°
