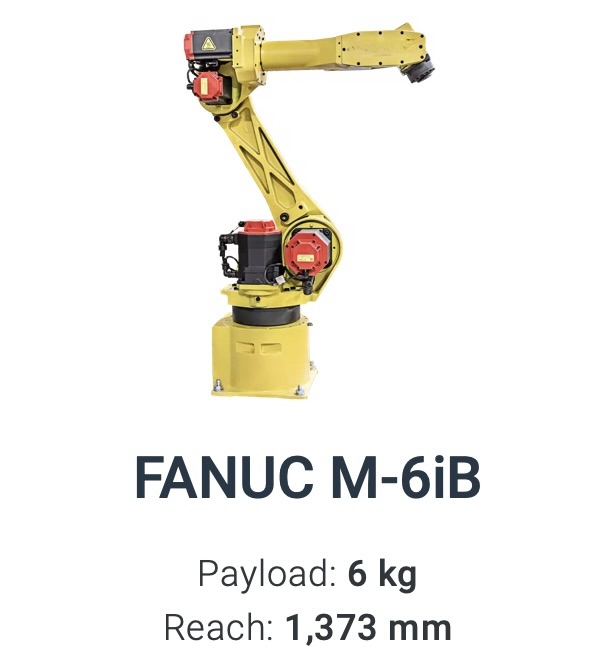

The Fanuc M6iB is the newer version of its predecessor the M6i. The robot arm features 6 axis of movement, a modular construction, and loads of standard capabilities that provide dexterity, reliability, and bring high speeds to the production line. The robot can flip over backward to produce an even larger work envelope. The M-6iB runs on the RJ3iB Controller.

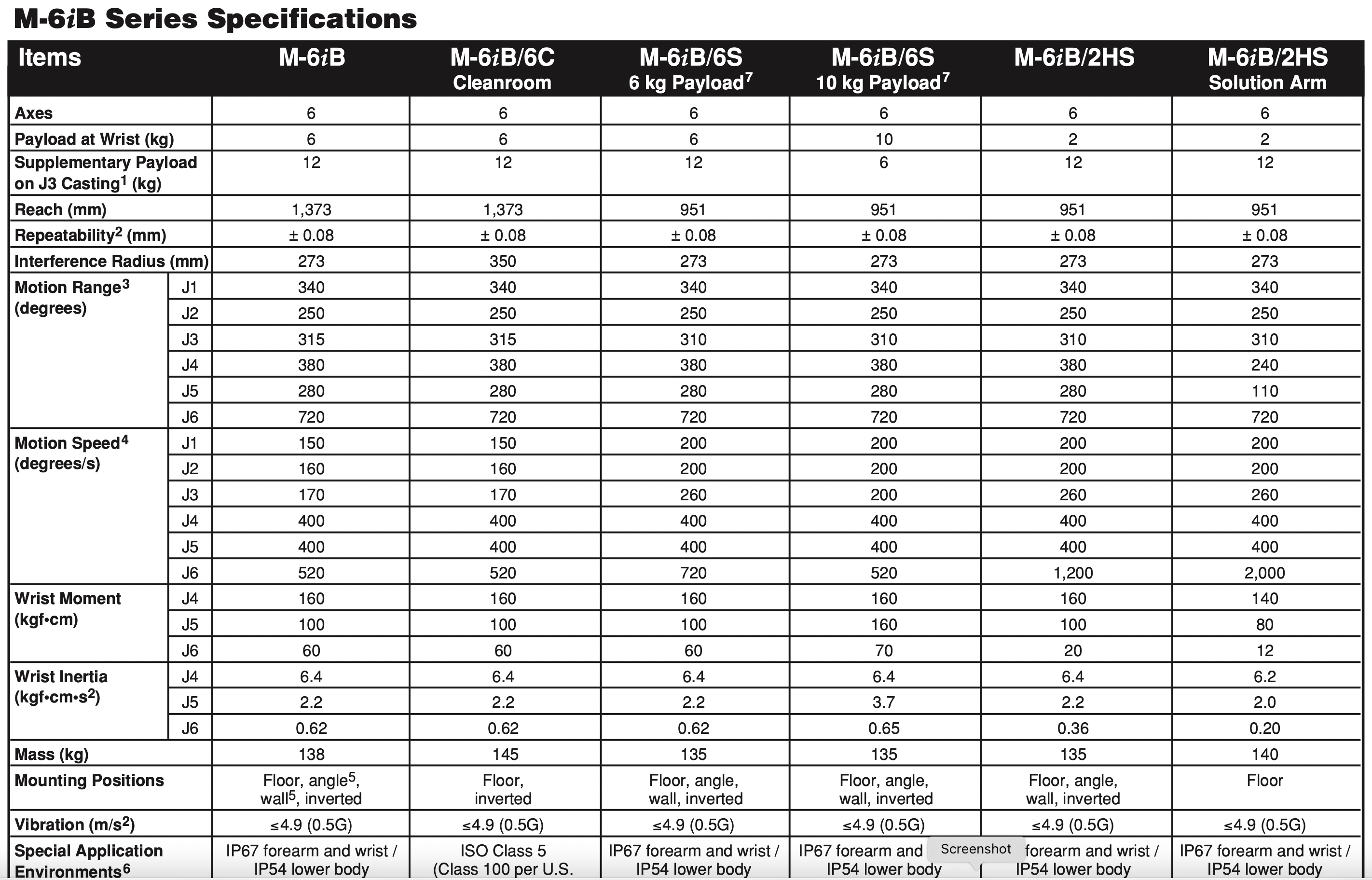

Robot Specifications:
Axes: 6
Payload: 6kg
H-Reach: 1373mm
Repeatability: ±0.08mm
Robot Mass: 138kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 150 °/s (2.62 rad/s)
J2 160 °/s (2.79 rad/s)
J3 170 °/s (2.97 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 520 °/s (9.08 rad/s)
Robot Motion Range:
J1 ±170°
J2 +160° - 90°
J3 +145° - 170°
J4 ±190°
J5 ±140°
J6 ±360°
Applications:
Flux Cored Welding Robots
Machine Tending Robots
Material Handling Robots
Pick and Place Robots
Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
