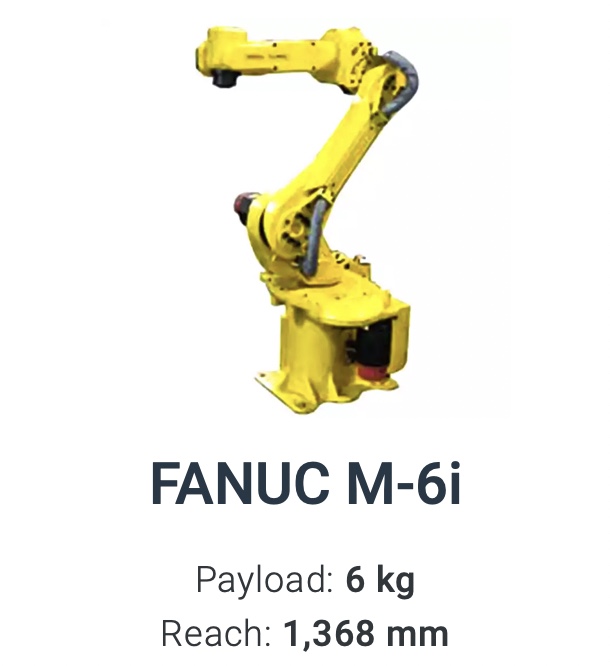

The Fanuc M-6i is a Fanuc legacy robot. There are many in the field today still running. We will occasionally stock these older robots to service our customers still running them. Of course though it is an older robot model it is still capable of providing valuable service to anyone looking for an inexpensive robot. The FANUC M-6i industrial robot features the older model Fanuc RJ2 or RJ3 controller. This is a 6 axis servo controlled robot.
Robot Specifications:
Axes: 6
Payload: 6kg
H-Reach: 1368mm
Repeatability: ±0.1mm
Robot Mass: 290kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 120 °/s (2.09 rad/s)
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 360 °/s (6.28 rad/s)
J5 360 °/s (6.28 rad/s)
J6 450 °/s (7.85 rad/s)
Robot Motion Range:
J1 ±165°
J2 +135° - 75°
J3 +150° - 149°
J4 ±190°
J5 ±140°
J6 ±350°
Applications:
Arc Welding Robots
Assembly Robots
Dispensing Robots
Machine Loading Robots
Material Handling Robots
Material Removal Robots
Options:
■ Fail-safe brakes on all six axes increase safety, functionality and control
■ 360 ̊ Axis 1 base rotation
■ Severe dust and liquid protection package for die cast spray, waterjet cutting and other harsh environment applications
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
