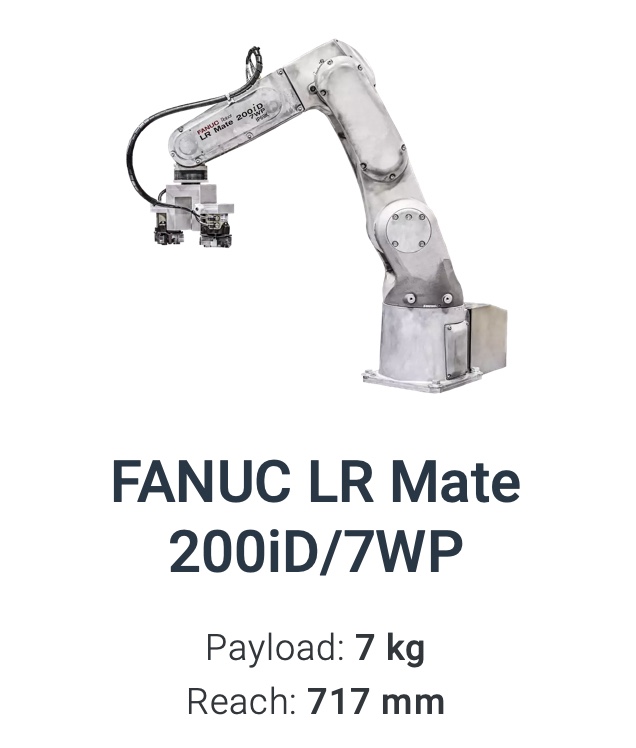

With its wash proof rating the Fanuc LR Mate 200iD/7WP has use in a variety of industries, from those dealing with metals and electronics, to those dealing with food and pharmaceuticals. The FANUC LR Mate 200iD/7WP may be just the wash-proof robot you're looking for. This robot is able to perform multiple robot applications, including handling, material removal, and small part assembly. The robot has an IP67 rating standard, with an IP69k option as well, which means that the robot is dust-proof, but it can also handle immersion in water up to 1m, and it can handle high pressure cleaning from steam jets. This is a 6 axis robot. Compatible with the R30iB Mate or R30iB Mate Plus Controller.

Robot Specifications:

Axes: 6

Payload: 7kg

H-Reach: 717mm

Repeatability: ±0.02mm

Robot Mass: 25kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°

Applications:

Assembly Robots

Material Handling Robots

Material Removal Robots

Pharmaceutical Robots

Food Processing Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
