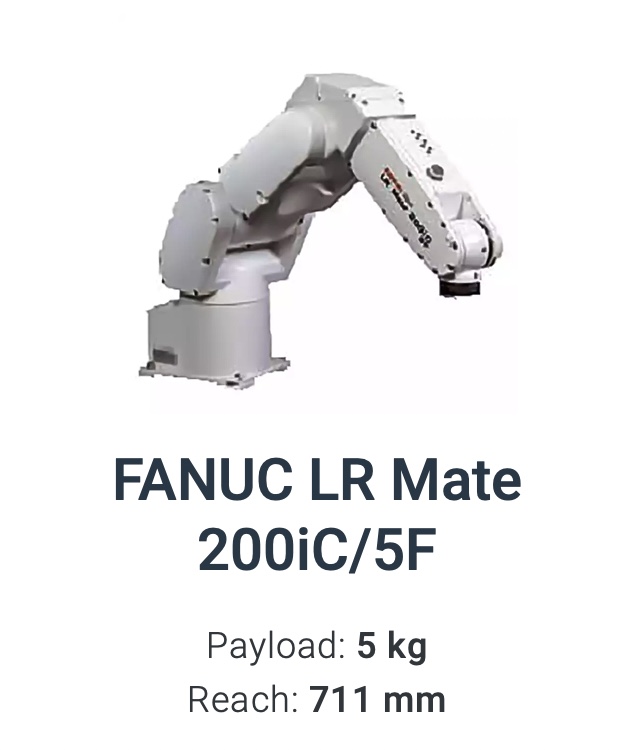

LR Mate 200iC/5F with R-30iA is a 5 axis robot and can be mounted on the floor, ceiling, angle, or wall to accommodate material handling, assembly, dispensing, picking, packing, and many other applications.

Robot Specifications:

Axes: 5

Payload: 5kg

H-Reach: 711mm

Repeatability: ±0.02mm

Robot Mass: 25kg

Structure: Articulated

Mounting: Floor, Inverted, Angle

Robot Motion Speed:

J1 350 °/s (6.11 rad/s)

J2 350 °/s (6.11 rad/s)

J3 400 °/s (6.98 rad/s)

J4 450 °/s (7.85 rad/s)

J5 1200 °/s (20.94 rad/s)

Robot Motion Range

J1 ±340°

J2 ±200°

J3 ±399°

J4 ±240°

J5 ±720°

Applications:

Assembly Robots

Dispensing Robots

Material Handling Robots

Meat Processing Automation Robots

Order Picking Robots

Packaging Robots

Palletizing Robots

Pick and Place Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
