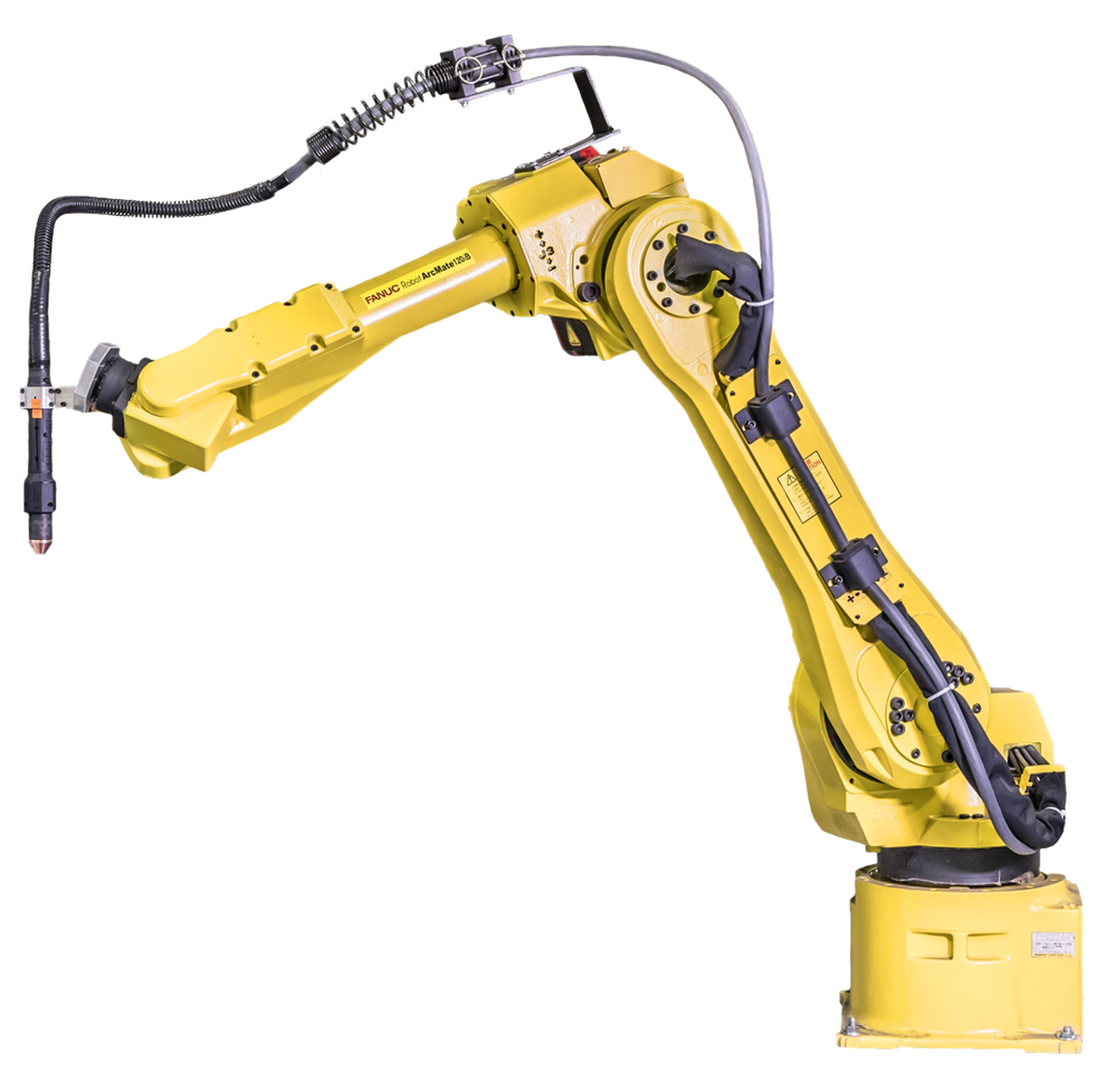

Suit­able for high-speed weld­ing and cut­ting process­es, the Fanuc ARC Mate 120iB is a six-axis robot­ic arm that is ser­vo-dri­ven. The Fanuc 120iB RJ3iB weld­ing robot pro­vides accu­rate and con­sis­tent path per­for­mance based on its sim­ple and reli­able construction.


ROBOT SPECIFICATIONS:

PAYLOAD 20 kg

REACH 1667 mm

AXES 6

REPEATABILITY 0.08 mm

MASS 220 kg

STRUCTURE Articulated

MOUNTING Floor, Inverted, Angle


ROBOT MOTION SPEED:

J1 165 °/s (2.88 rad/s)

J2 165 °/s (2.88 rad/s)

J3 175 °/s (3.05 rad/s)

J4 350 °/s (6.11 rad/s)

J5 340 °/s (5.93 rad/s)

J6 520 °/s (9.08 rad/s)


ROBOT MOTION RANGE:

J1 ±170°

J2 +160° - 90°

J3 +290° - 170°

J4 ±200°

J5 ±140°

J6 ±450°


Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
