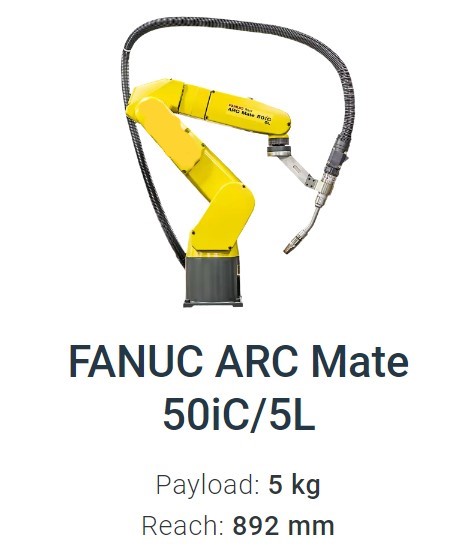

The FANUC Arc Mate 50iC/5L welding robot offers a large work envelope as it is equipped with six axes of motion and the capability to flip over backwards for a larger work envelope. Fast speeds and a slim profile make the ARC Mate 50iC/5L industrial robots ideal for performing welding tasks. The robot controller is the highly reliable Fanuc R30iA.
Robot Specifications:
Axes: 6
Payload: 5kg
H-Reach: 892mm
Repeatability: ±0.03mm
Robot Mass: 29kg
Structure: Articulated
Mounting: Floor, Inverted, Angle
Robot Motion Speed:
J1 270 °/s (4.71 rad/s)
J2 270 °/s (4.71 rad/s)
J3 270 °/s (4.71 rad/s)
J4 450 °/s (7.85 rad/s)
J5 450 °/s (7.85 rad/s)
J6 720 °/s (12.57 rad/s)
Robot Motion Range:
J1 ±340°
J2 ±230°
J3 ±373°
J4 ±380°
J5 ±240°
J6 ±720°
Applications:
Arc Welding Robots
Plasma Welding Robots
Shielded Metal Arc Welding Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.
