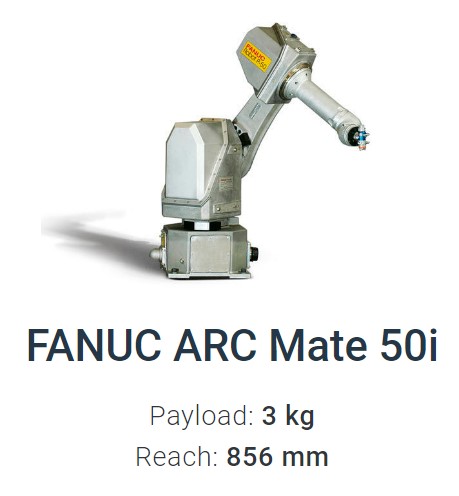

This robot is a compact, high-speed design, the used FANUC ARC Mate 50i maximizes throughput in arc welding applications. This performance-minded robot arm has six axes, a slim wrist design, and multiple mounting options.

The ARC Mate 50i RJ3iB requires only a small installation space yet provides a large work due to the ability to flip over backwards.

For greater flexibility in industrial settings, the used FANUC ARC Mate 50i RJ3iB is compatible will all major brands of welding equipment and most servo-driven positioners. Reliability is increased through such enhancements as internal cable routing and sealed bearings and drives.

Robot Specifications:

Axes: 6

Payload: 3kg

H-Reach: 856mm

Repeatability: ±0.04mm

Robot Mass: 47kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 150 °/s (2.62 rad/s)

J3 160 °/s (2.79 rad/s)

J4 400 °/s (6.98 rad/s)

J5 330 °/s (5.76 rad/s)

J6 480 °/s (8.38 rad/s)

Robot Motion Range:

J1 ±160°

J2 +150° - 35°

J3 +165° - 125°

J4 ±190°

J5 ±120°

J6 ±360°

Applications:

Arc Welding Robots

MIG Welding Robots

TIG Welding Robots

Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.

CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.

See Our Arc Mate Stock as well as other Robots that lend themselves to Mig Welding Applications.
