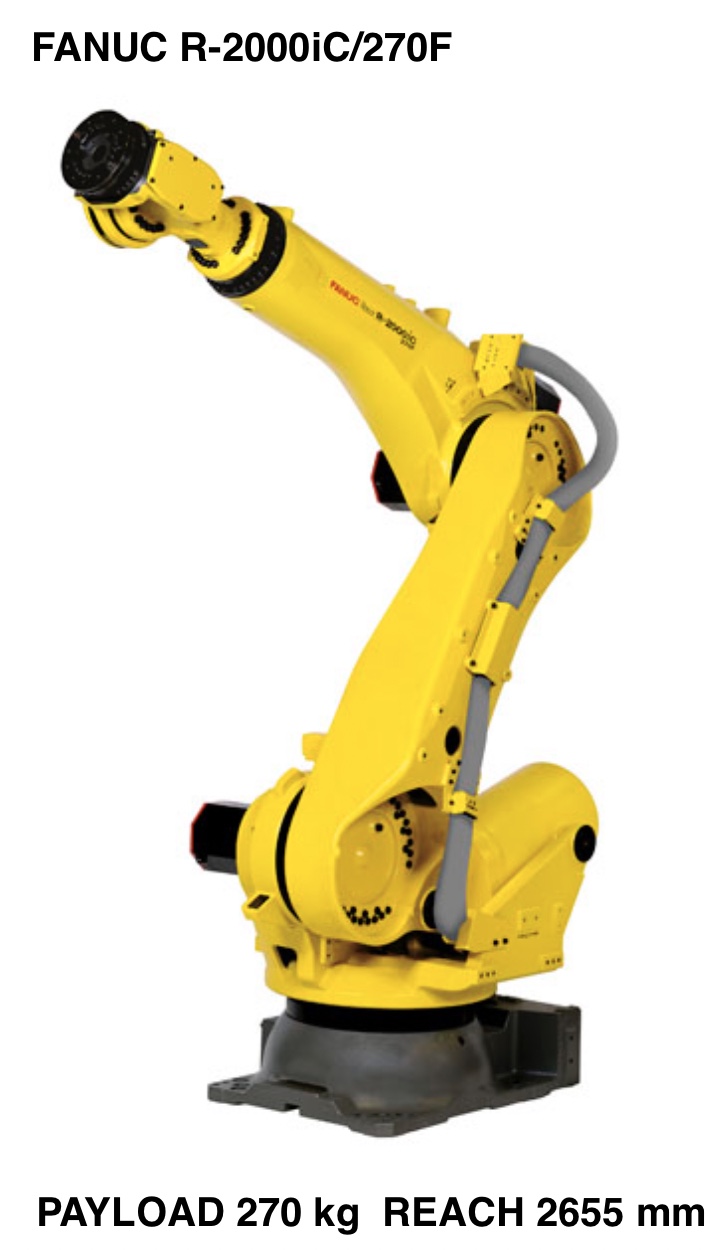

The FANUC R-2000iC/270F industrial robot follows on from the FANUC 2000iB/250F, adding an additional 20 kgs of payload and 455 mm of reach to the package. This makes it by far the strongest robot in the R-2000 range. Sitting within a relatively small footprint, its design makes best use of space in crowded factory environments. On spot welding applications, its strength, compactness and speed come to the forefront. It will, however, also handle a wide range of additional manufacturing and palletizing processes. The robot runs on the Fanuc R-30iB Control Platform
Primary Robot Applications:
Spot Welding Robots, Material Handling Robots, Palletizing Robots, Welding Robots
ROBOT SPECIFICATIONS:
PAYLOAD 270 kg
REACH 2655 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1320 kg
STRUCTURE Articulated
MOUNTING Floor
ROBOT MOTION SPEED:
J1 105 °/s (1.83 rad/s)
J2 90 °/s (1.57 rad/s)
J3 85 °/s (1.48 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 200 °/s (3.49 rad/s)
ROBOT MOTION RANGE:
J1 ±370°
J2 ±136°
J3 ±312°
J4 ±720°
J5 ±250°
J6 ±720°
