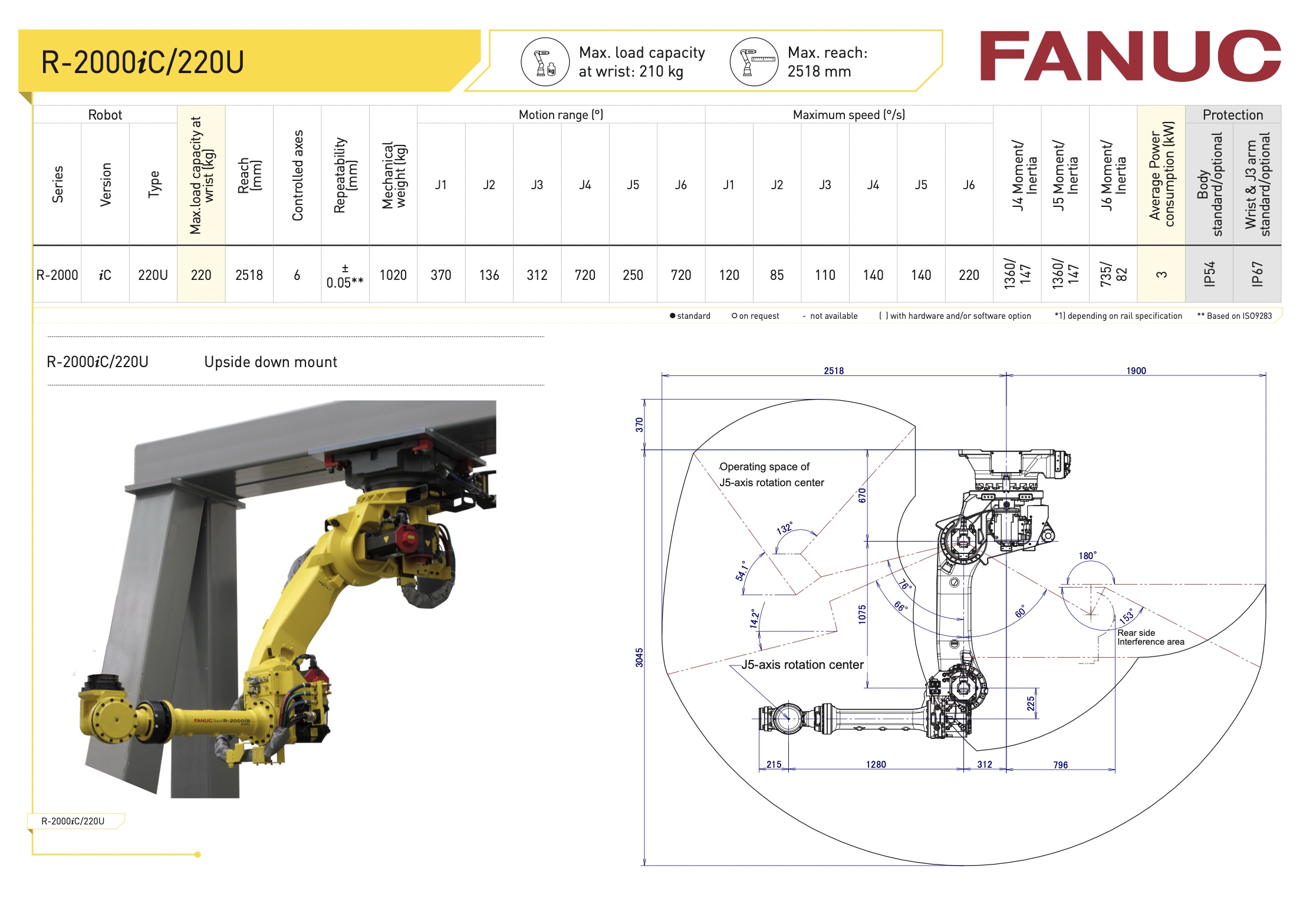

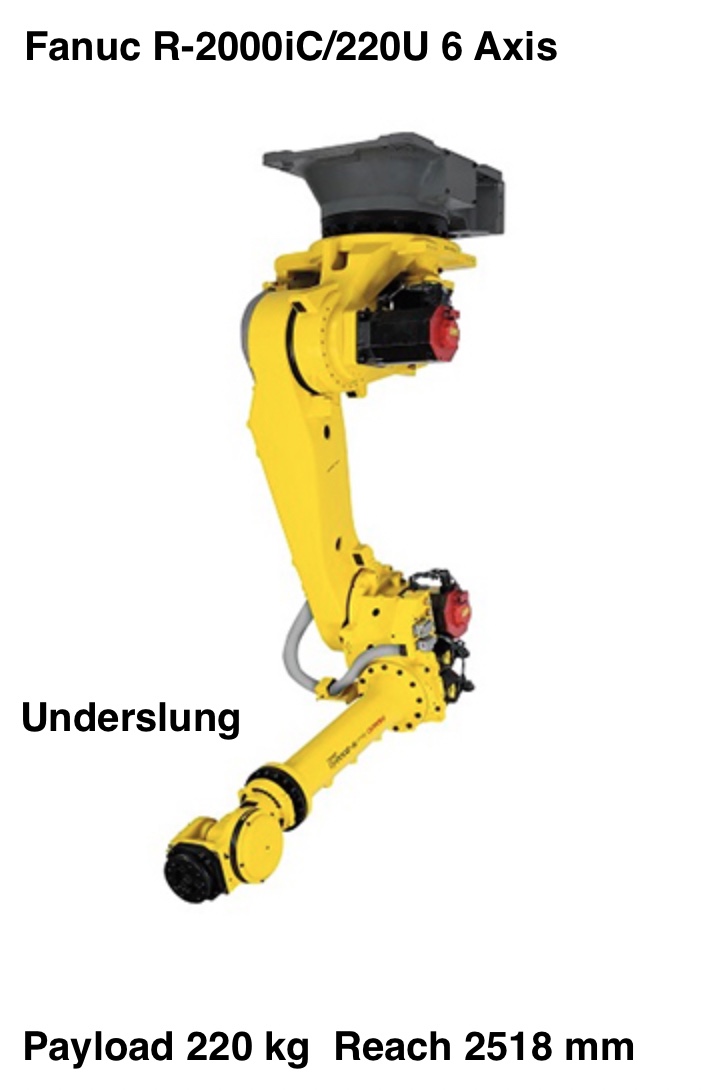

A robotic work cell unsuitable for floor or wall mounting requires a solution that can adapt to such needs. Thanks to a flip over capability, the R-2000iC/220U is mounted to the ceiling, giving it the flexibility to fit narrow cell designs. This smart feature enables several robots to work together in close proximity with shortened cycle times. The Fanuc R‑2000iB/220U robot is a six-axis inverted robot used for a variety of applications. At the wrist, the maximum load capacity is 220Kg with a horizontal reach of 2470mm. The R2000iB/220U run on the Fanuc R‑30iB robot can be fixed with vision, bin picking functions, and diagnostic functions with the controller.
ROBOT APPLICATIONS:
Spot Welding Robots, Dispensing Robots, Machine Loading Robots, Part Transfer Robots, Assembly Robots, Material Removal Robots
ROBOT SPECIFICATIONS:
PAYLOAD 220 kg
REACH 2470 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1150 kg
STRUCTURE Articulated
MOUNTING Floor, Inverted
ROBOT MOTION SPEED:
J1 95 °/s (1.66 rad/s)
J2 85 °/s (1.48 rad/s)
J3 95 °/s (1.66 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 190 °/s (3.32 rad/s)
ROBOT MOTION RANGE:
J1 ±360°
J2 ±136°
J3 ±362°
J4 ±720°
J5±250°
J6±720°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
CALL AN R.A.B. INDUSTRIES, INC REPRESENATIVE (586)752-0090 FOR ALL YOUR ROBOTICS AND AUTOMATION NEEDS. RAB BUYS FANUC ROBOTS, KAWASAKI ROBOTS, ABB ROBOTS, MOTOMAN ROBOTS, KUKA ROBOTS, DENSO ROBOTS, UNIVERSAL ROBOTS AND ROBOT PARTS, ROBOT MRO, CONTROLLERS, CABLES, RVS, TEACH PENDANTS. WE ARE ROBOTIC AUTOMATION BULLS.
