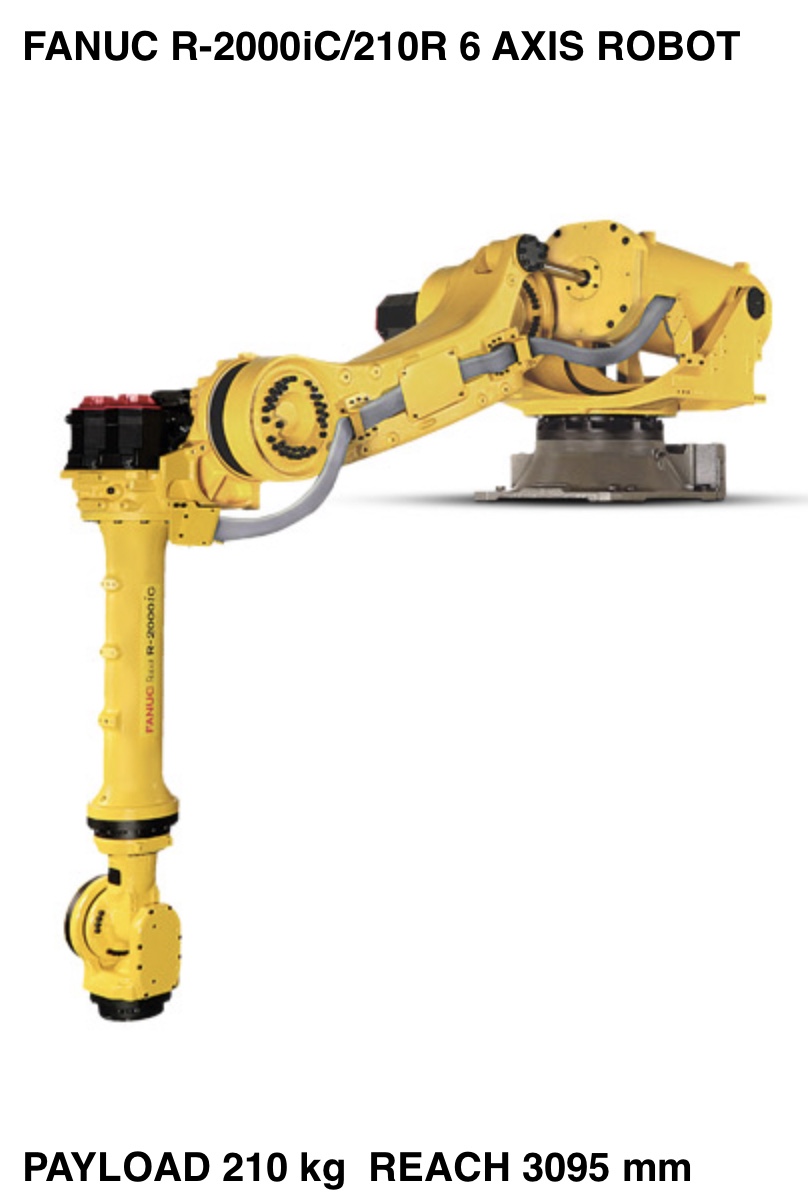

The Fanuc R-2000iC/210R is a rack-mounted model saves space yet offers enormous flexibility thanks to its huge 3095 mm work envelope. It also can be floor mounted. Offering high performance and excellent payload capacities, it makes the perfect solution for a multitude of high-payload applications. Kitted out with a compact dress out package it also makes a highly efficient spot welding robot. This robot is a 6 axis robot that runs on the Fanuc R-30iB controller.
Primary Applications:
SPOT WELDING ROBOTS
RACK MOUNT ROBOTS
RTU ROBOTS
MACHINE TENDING ROBOTS
LOAD UNLOAD ROBOTS
MATERIAL HANDLING ROBOTS

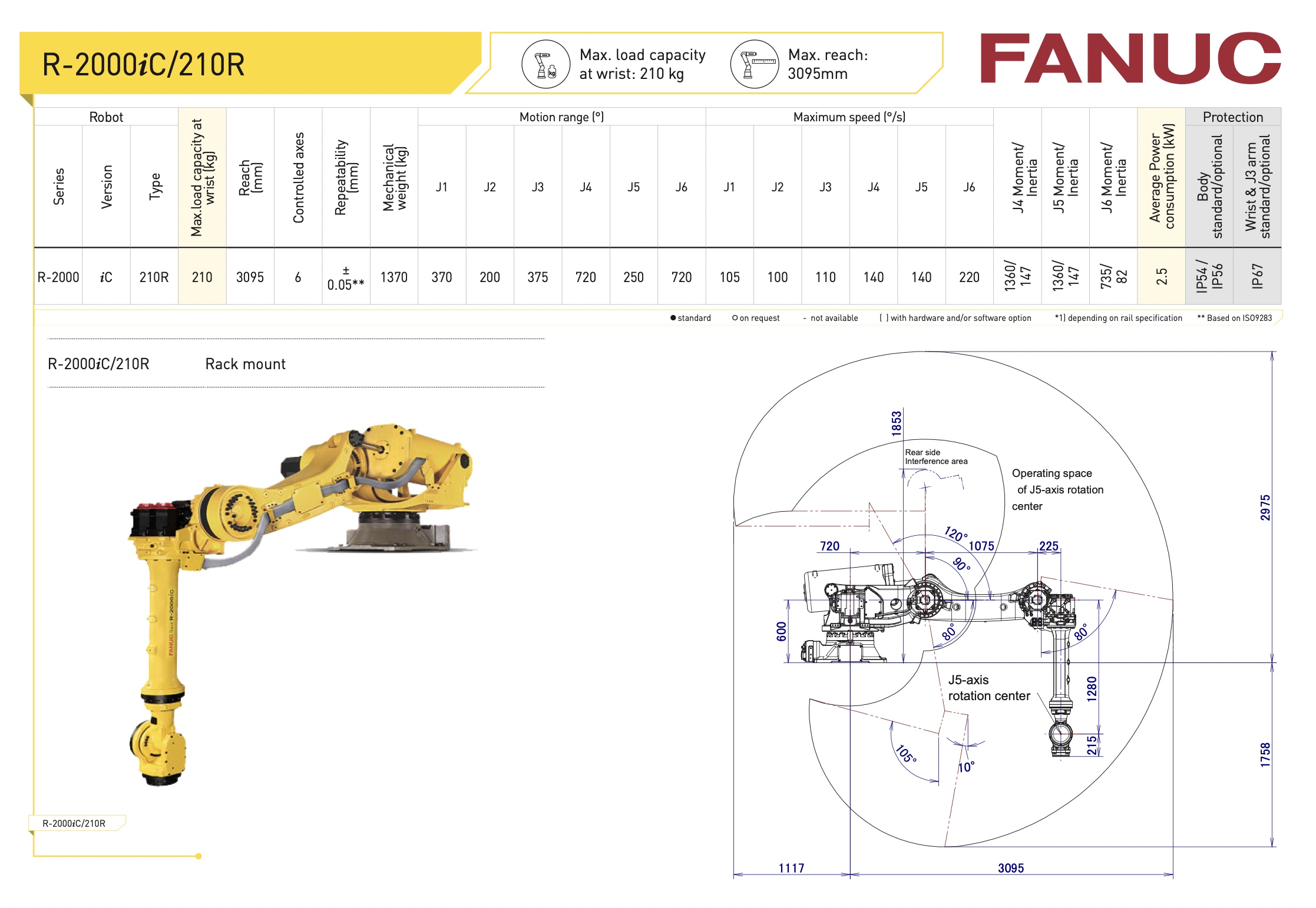

ROBOT SPECIFICATIONS:
PAYLOAD 210 kg
REACH 3095 mm
AXES 6
REPEATABILITY 0.2 mm
MASS 1370 kg
STRUCTURE Articulated
MOUNTING Rack
ROBOT MOTION SPEED:
J1 105 °/s (1.83 rad/s)
J2 100 °/s (1.75 rad/s)
J3 110 °/s (1.92 rad/s)
J4 140 °/s (2.44 rad/s)
J5 140 °/s (2.44 rad/s)
J6 220 °/s (3.84 rad/s)
ROBOT MOTION RANGE:
J1 ±370°
J2 ±200°
J3 ±375°
J4 ±720°
J5 ±250°
J6 ±720°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
