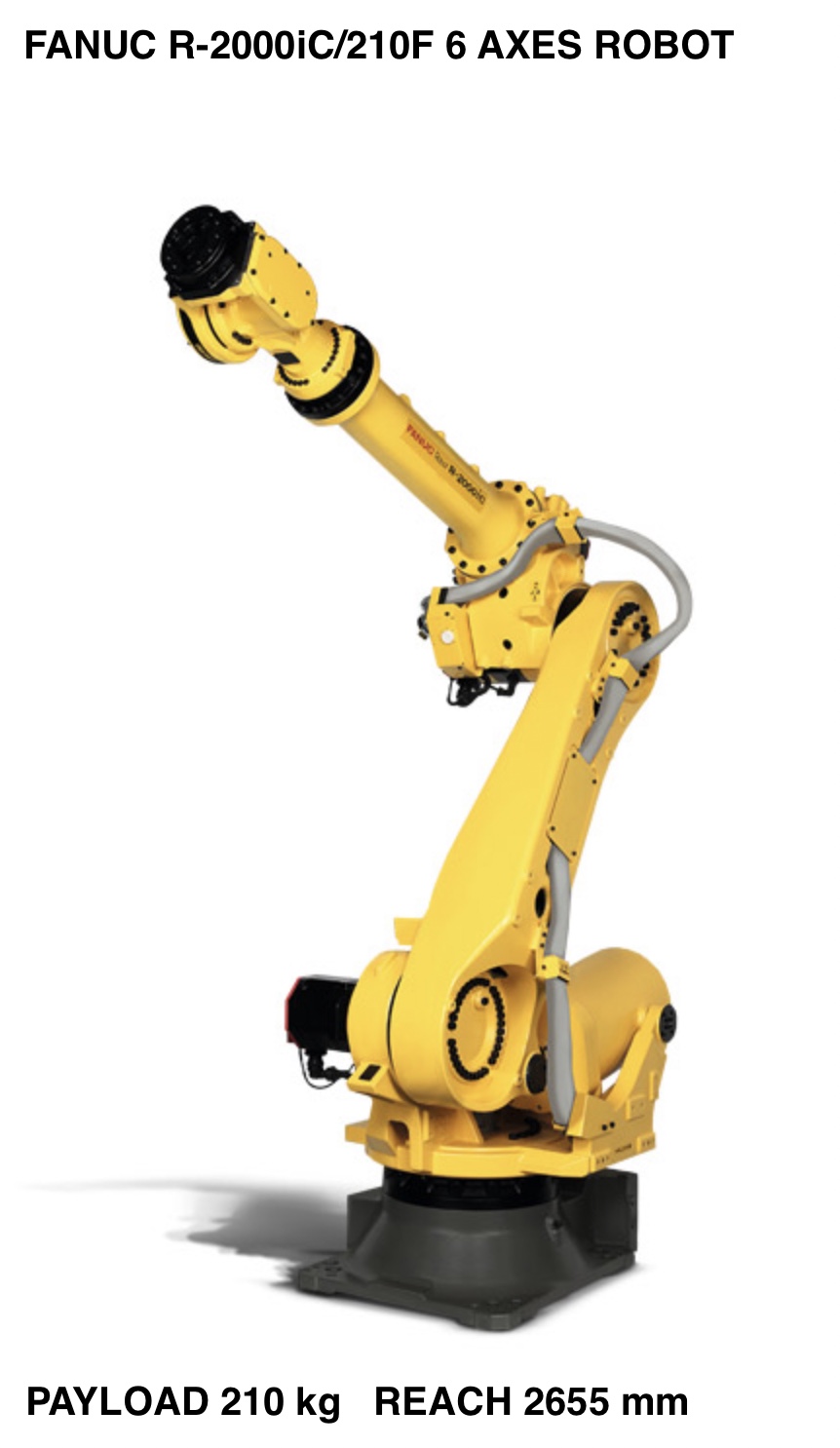

The Fanuc R-2000iC/210F runs on the Fanuc R-30iB Controller and features a huge 210 kg payload, this model is ideally suited to any number of heavy handling jobs on almost any application. With numerous mounting options available to make best use of space and create an optimal work envelope, it makes an excellent spot welding robot. Additional options make it suitable for food processing applications or wet environments. One of Fanuc Robotics most widely used robots.
PRIMARY APPLICATIONS:
Spot Welding Robots
Material Handling Robots
Welding Robots
Dispensing Robots
ROBOT SPECIFICATIONS:
PAYLOAD 210 kg
REACH 2655 mm
AXES 6
REPEATABILITY 0.2 mm
MASS 1370 kg
STRUCTURE Articulated
MOUNTING Floor
ROBOT MOTION SPEED:
J1 120 °/s (2.09 rad/s)
J2 105 °/s (1.83 rad/s)
J3 110 °/s (1.92 rad/s)
J4 140 °/s (2.44 rad/s)
J5 140 °/s (2.44 rad/s)
J6 220 °/s (3.84 rad/s)
ROBOT MOTION RANGE:
J1 ±370°
J2 ±136°
J3 ±312°
J4 ±720°
J5 ±250°
J6 ±720°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
