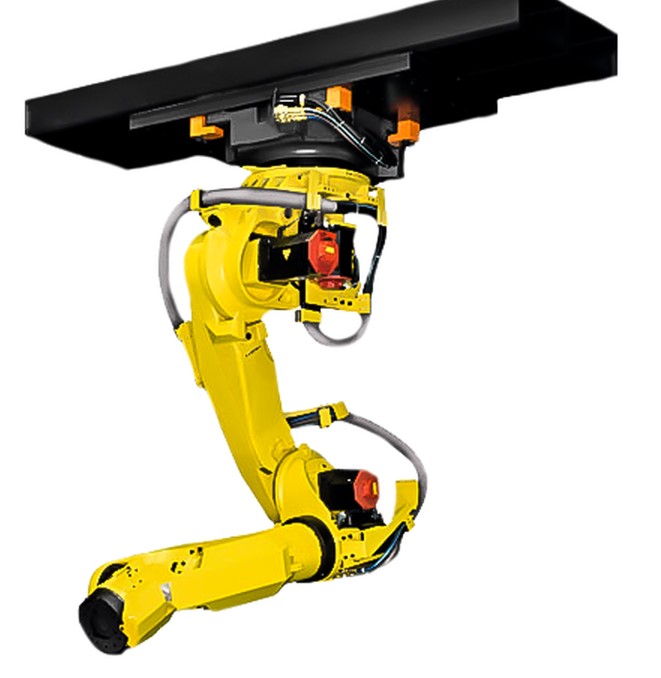

If your looking for a multipurpose robot that is able to be rail or ceiling mounted the Fanuc R‑2000iB/220US may be the robot for you. This robot is extremely versatile and easy to use, with a payload that can handle heavy duty tasks and a reach to match. This is great version of the R‑2000iB if you need to save space. By mounting the R‑2000iB/220 from a rail, it frees up floor space, or works well in a work cell that has limited space. Fanuc thought of everything with this design, even a hollow wrist for the robot arm. This ensures that cables don’t swing during operation or snag on existing structures or robots.
Another great feature of the Fanuc R2000iB/220US is its ability to flip over, working behind itself as easily as in front. This flexible option ensures that the robot could easily work back and forth between two stations or work cells. By being able to flip over, the R 2000iB/220US also ensures that cycle times are reduced by allowing several robots to work in close proximity with one another without having to worry about damaging a robot or snagging on a robot.
The hollowed out wrist of the R‑2000iB/220US is great for cable protection, but not only it cuts down on swing and allows the manufacturer freedom. It is also a good choice because it cuts down on wear and tear making maintenance not as costly over the years, and extending the life of the robot. Sporting a stackable, compact R‑30iB controller that is user-friendly and allows for maximum energy savings, the R‑2000iB/220US is a great all around robot for many different manufacturers.
The robot runs on the Fanuc R-30iB Controller Platform.
Primary Applications:
Machine Tending Robots
Material Handling Robots

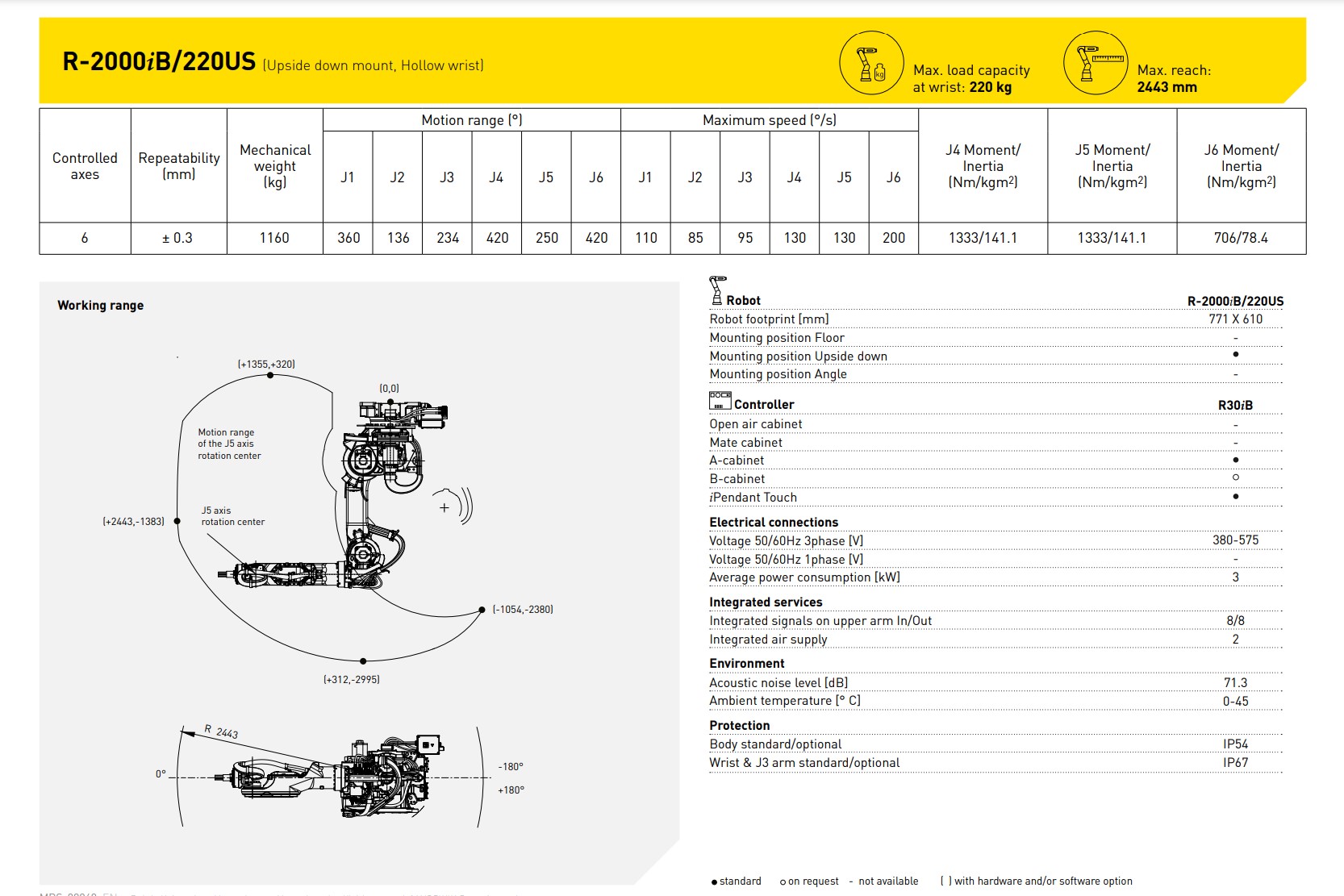

Robot Specifications:
PAYLOAD 220 kg
REACH 2443 mm
AXES 6
REPEATABILITY 0.3 mm
MASS 1160 kg
STRUCTURE Articulated
MOUNTING Inverted
Robot Motion Speed:
J1 110 °/s (1.92 rad/s)
J2 85 °/s (1.48 rad/s)
J3 95 °/s (1.66 rad/s)
J4 130 °/s (2.27 rad/s)
J5 200 °/s (3.49 rad/s)
Robot Motion Range:
J1 ±360°
J2 ±136°
J3 ±234°
J4 ±420°
J5 ±250°
J6 ±420°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
